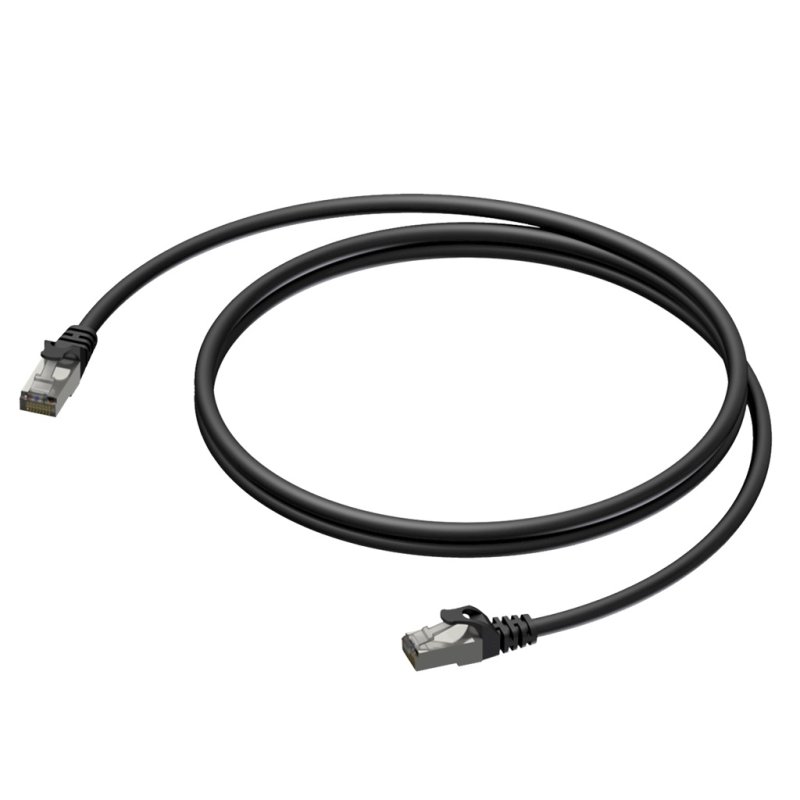

ProCab nätverkskabel CAT6 F/UTP - flera längder

ProCab BSD560 CAT5E F/UTP kabel

finns i följande längder: 0.5,1,1.5,2,3,5,10

Basic serie Internetkabel CAT6 F/UTP med stabila RJ45-kontakter. Ledare 4 par tvinnade 26 AWG-kablar som garanterar en säker och optimal anslutning och signaldistribution.
Ytterkappan är en low-smoke halogenfri flexibel PVS-kappa som gör den användbar för både installation i offentliga byggnader eller mobilt bruk..

Supports 10Base-T, 100Base-TX and 1000Base-T gigabit networks.
Supports Dante, Cobranet, Ethersound, HdbaseT and other AV network protocols

*Flexible PVC jacket
*26 AWG stranded conductors
*5.9 mm (Ø) outer diameter
*Oxygen free copper
*Al-foil shielding
*Wired according to ANSI/TIA/EIA 568B (straight)
*LSHF jacket


Physical Characteristics
Type of cable F/UTP CAT6 Networking cable
Inner conductor Material BC 1 x 0.42 mm (Ø) (OFC)
Section 0.14 mm²
American Wire Gauge 26 AWG
Number of conductors 8 (4 pairs)
Insulation Material HDPE 0.90 mm (Ø)
Colours Green / White & Green ; Blue / White & Blue ; Orange / White & Orange ; Brown / White & Brown
Conductor twisting Lay length <= 30 mm
Shielding Aluminium foil Al-mylar, 100% coverage - 25% Overlap
Outer jacket Material LSHF 5.9 mm (Ø)
Colours Black
Connection type RJ45 male to RJ45 male


Electrical Characteristics
Dielectric strength 1.5 (KV / 1 min. DC)
Max. Delay / Skew 45 (ns / 100 m)
Rated voltage 72 V
Nom. Velocity of propagation 65 %
Characteristic impedance 100 Ohm ± 10 Ohm
Max. conductor DC resistance 130 (Ohm / Km)
DC resistance unbalanced 5 %
Nom. mutual capacitance <= 5.6 (nF / 100 m)
Pair to ground capacitance unbalance <= 330 (nF / 100 m)

Information

Modell:	Data
Variant:	Cat 6
