ProCab Signal & power kabel 3G2,5, Ø=17,5 mm, 100 meter

Beskrivning

ProCab PAC152 Balanceret signal / DMX-AES & 3G2.5 Power kabel

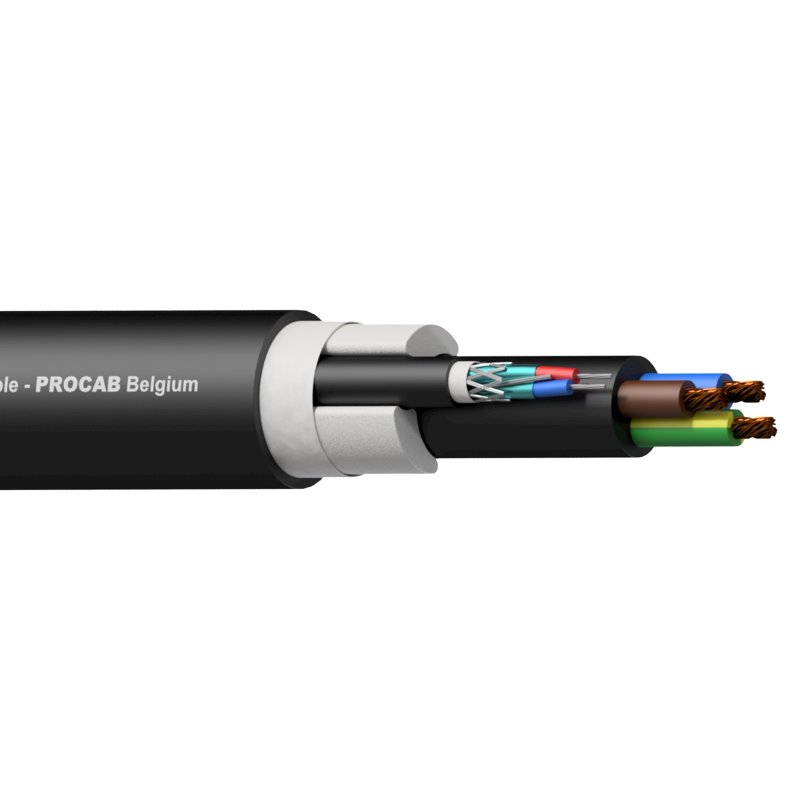

PAC251 er et hybridstrøm / lydkabel, der består af 3 x 2,5 mm² strømafsnit og et 2 x 0,22 mm² 110 Ohm signalpar, hvilket gør det ideelt til udlejningsapplikationer.
Diameter Ø=17,5 mm
Signalparret kan bruges til analog lyd, digital lyd eller DMX.
El- og signalkablet har hver en separat kappe, der gør det nemt at dele kablerne ud ved enden.

Inner conductor Power Insulation Material PVC 3.7 mm (Ø)
Colours Blue / Brown / Yellow & Green
Inner jacket Material PVC 10 mm (Ø)
Colours Black
Inner conductor Audio Shielding Drain wire TC 7 x 0.2 mm (Ø) (OFC)
Insulation Material PE 1.55 mm (Ø)
Colours Red / Blue
Inner jacket Material PVC 5 mm (Ø)
Outer jacket Material PVC 17.5 mm (Ø)
Colours Black
Type of cable Power & 1 x DMX-AES 110 Ω cable
Inner conductor Material BC 48 x 0.25 mm (Ø) (OFC)
Power Section 2.5 mm²
Audio Material TC 7 x 0.2 mm (Ø) (OFC)
Power American Wire Gauge 14 AWG
Audio Section 0.22 mm²
Power Number of conductors 3
Audio American Wire Gauge 24 AWG
Number of conductors 2


Electrical Characteristics
Max. operation voltage Power 500 V
Max. conductor DC resistance 7.98 (Ω / Km)
85 (Ω / Km)
Characteristic impedance 110 Ω
