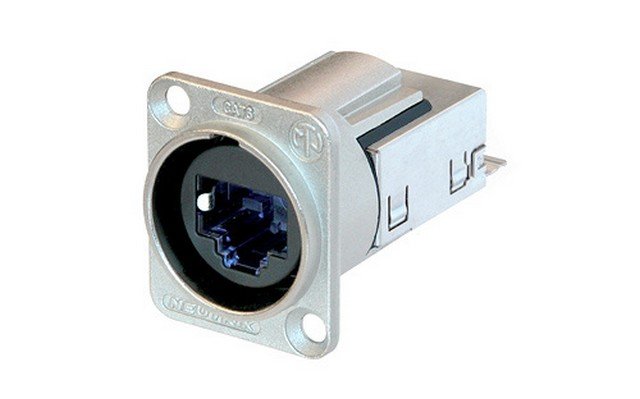

RJ45 CAT6 etherCON hona chassie kontakt med skärkontakter

Beskrivning

RJ45 CAT6 etherCON hona chassie kontakt

Kan ENDAST användas med CAT6 kabelstik NE8MC6-MO, NKE6S*-kablar och generiska RJ45-stik. Är inte kompatibel med kabelkontakter NE8MC* och CAT6A kabelstik NE8MX6*.

Contact resistance: Dielectric strength: 1 kVdc
Frequency range: 1 - 250 MHz
Insulation resistance: > 0.5 GΩ
Rated current per contact: 1,5 A
Rated voltage: Transmission performance: CAT 6
Standard compliance: TIA/EIA 586B, IEC11801
Insertion force: ≤ 40 N
Withdrawal force: ≤ 20 N
Lifetime: > 1000 mating cycles
Panel thickness: max. 3 mm , 0.12''
Wiresize: solid: 0.205 - 0.324 mm² (AWG 24 – AWG 22)
Wiresize: stranded: 0.141 – 0.355 mm² (AWG 26/7 – AWG 22/7)
Locking device: Push-Pull
Chassis shape: D
Contact plating: 0.7 µm Au over 1.2 µm Ni plating
Contacts: Bronze (CuSn8)
Insert: Polycarbonate
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Nickel
Strain relief: Stainless steel
Flammability: UL 94 HB
Protection class: IP 65
Temperature range: -10 °C to +60 °C
