REAN Mini jackstik stereo til 6,4 mm kabel

Beskrivning

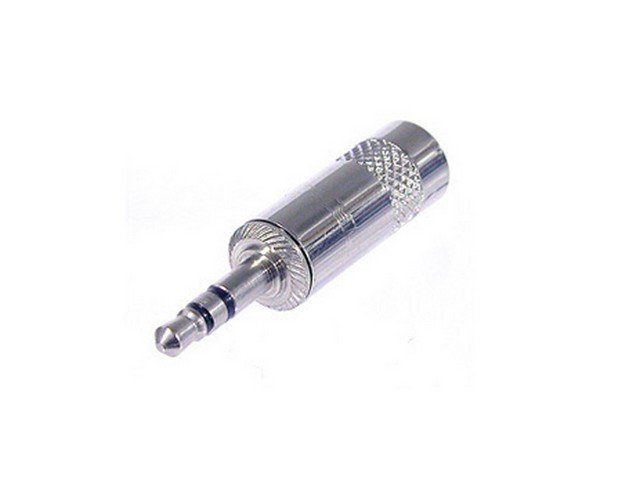

NYS231L Mini jackstik Ningbo stereo til 6,4 mm kabel

3 polet 3,5 mm jackstik, metalhus, til brug ved alm. mikrofonkabler på op til 6,4 mm.

Title NYS231L
Connection Type Plug

Electrical
Contact Resistance ≤ 10 mΩ
Insulation Resistance ≥ 200 MΩ(Initial)
Dielectric Strength 0.5 KVdc 50HZ

Mechanical
Lifetime > 5,000 Mating Cycles
Insertion and Withdrawal Force 5 - 40 N
Cable O.D. max 4.5 mm for standard outlet
max 6.4 mm for large outlet ( * L）
max 8.5 mm for large outlet ( * LL）

Material
Plug finger Brass
Sleeve Zinc
Retainer ring PA66+30%GF
Soldering Contact Phosphor Bronze
Cable Clamp Steel
Insulation PP

Housing Zinc
Plug finger plating Nickel
Sleeve plating Nickel
Soldering Contact plating Tin
Cable Clamp plating Tin
Housing plating Nickel
