Neutrik Jack hon kabelfäste, balanserad, svart hölje

Beskrivning

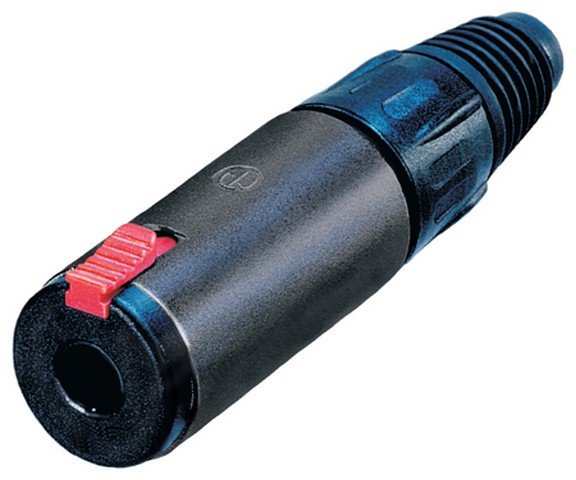

NJ3FC6-BAG Jack hon kabelfäste, balanserad, svart hölje

Contact resistance: Dielectric strength: 1 kVdc
Insulation resistance: ≥ 1 GΩ @ 500 V dc
Rated current per contact: 10 A
Cable O.D.: 3.5 - 8.0 mm
Insertion force: Withdrawal force: Lifetime: > 10000 mating cycles
Locking force: > 80 N
Wiresize: 1 mm²
Wiresize: 18 AWG
Wiring: Solder contacts
Locking device: Latch lock
Boot: Polyuretan
Contact plating: 2 µm Ag
Contacts: Mässing (CuZn37) (Ground)
Insert: Polyamid (PA 6.6 30 % GR)
Shell: Zinkgjutgods (ZnAl4Cu1)
Shell plating: Svart
Strain relief: Polyacetal (POM)
Standard compliance: EIA RS 453, IEC 60603-11
Solderability: Complies with IEC 68-2-20
Temperature range: -25 °C to +70 °C
