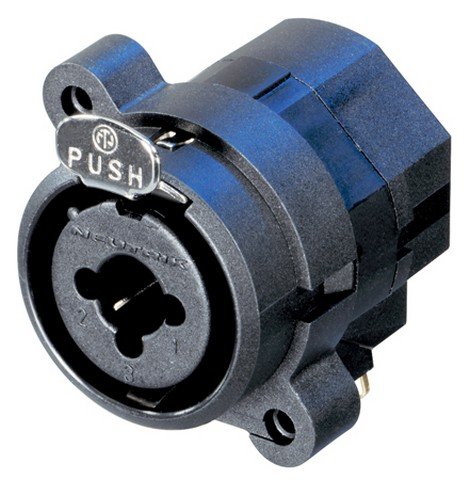

Neutrik COMBO chassie fattning hona

Beskrivning

NCJ9FIS COMBO chassie fattning hona

Contact resistance: Contact resistance: Dielectric strength: 1,5 kVdc
Insulation resistance: > 10 GΩ (initial)
Rated current per contact: 7,5 A (XLR)
Rated current per contact: 7,5 A (Jack)
Rated voltage: Switching contacts: 3
Insertion force: ≤ 25 N
Withdrawal force: ≤ 25 N
Lifetime: > 1000 mating cycles
Panel thickness: max. 7 mm 0.27"
Mounting direction: Rear mounting
Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
Contacts: Bronze (CuSn6)
Insert: Polyamide (PA 6.6 30 % GR)
Locking element: Steel Ck67
Temperature range: -30 °C to +80 °C
