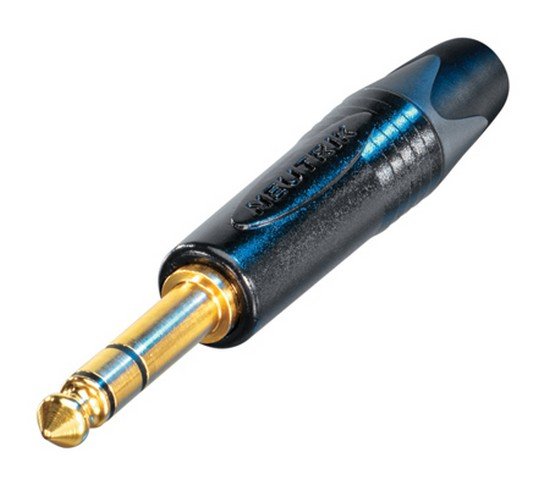

Neutrik NP3X-B stereo jackstick guldkontakt, Sort

Beskrivning

NP3X-B Jackstick stereo, slank version, guldkontakt

3 polet, 1/4" jack-stick, forgyldte kontakter, sort hus.

Contact resistance: depends on mating connector mΩ
Dielectric strength: 1 kVdc
Insulation resistance: > 2 GΩ (initial)
Rated current per contact: depends on mating connector A
Rated voltage: Cable O.D.: 4 - 7 mm
Lifetime: > 1000 mating cycles
Wiresize: 1 mm²
Wiresize: 18 AWG
Wiring: Solder contacts
Bushing: Polyacetal (POM) + PU
Contact plating: 0.2 µm Au
Contacts: Brass (CuZn39Pb3)
Insert: Polyamide (PA 6.6 30 % GR)
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Black chromium
Strain relief: Polyacetal (POM)
Standard compliance: IEC 60603-11 / EIA RS-453
Solderability: Complies with IEC 68-2-20
Temperature range: -20 °C to +65 °C
