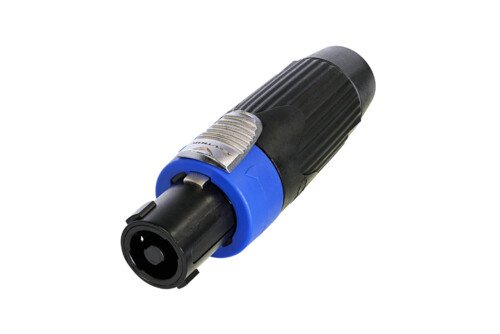

Neutrik 4-pol SpeakON kabelstik, hun, Sort

Beskrivning

NLT4FXX

4-polet hunkabelstik, sort metalhus, trækaflastning af borepatron

Dette stik er fuldt kompatibelt med enhedsstandarden IEC 62368-1 på grund af dets komponentcertificering i henhold til IEC 61984.

speakON STXX-serien er specielt designet til heavy duty forstærker-højttalerapplikationer som professionel touring. Den ekstremt robuste og holdbare STXX-serie har et metalhus.

Title NLT4FXX-BAG
Gender female
Electrical
Contact resistance < 2 m
Dielectric strength 2.8 kVac
Insulation resistance >0.1 G (after dampheat)
Rated current per contact 30 A rms continuous
Rated voltage 250 V ac
Attention speakON is NOT to be used as an AC mains or power supply connector!
Mechanical
Cable O.D. 9 - 16 mm
Lifetime > 5000 mating cycles
Wiresize 6 mm²
Wiresize 10 AWG
Termination Solder contacts
Locking device Quick Lock (latch)
Material
Contact plating Ag
Contacts Copper Alloy
Shell Zinc diecast, black chrome plated
Insert Polyamide (PA 66)
Locking element Zinc diecast, Ni plated
Strain relief Polyacetal (POM)
Shell coating Black KTL
Environmental
Temperature range -30 °C to +80 °C
Flammability UL 94 V-0
Protection class IP 54 (mated condition)
Solderability Complies with IEC68-2-20
