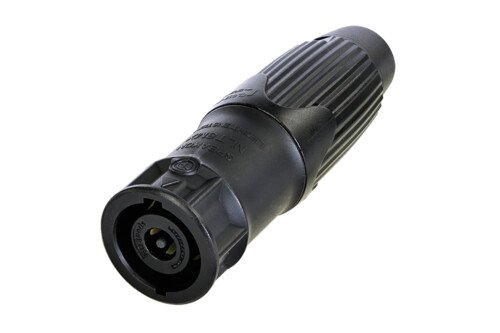

Neutrik 8 pol SpeakON kabelstik, han, Sort

Beskrivning

NLT8FXX

8-polet hankabelstik, sort metalhus, trækaflastning af borepatron, ¼" flade faner

Dette stik er accepteret i lydudstyr designet i henhold til IEC 62368-1 på grund af dets komponentcertificering i henhold til IEC 61984.

speakON STXX-serien er specielt designet til heavy duty forstærker-højttalerapplikationer som professionel touring. Den ekstremt robuste og holdbare STXX-serie har et metalhus.

Title NLT8MXX-BAG
Gender male
Electrical
Contact resistance < 2 m
Dielectric strength 1.5 kVac
Insulation resistance > 0.1 G (after dampheat)
Rated current per contact 30 A rms continuous (acc. to IEC 61984)
Rated voltage 250 V ac
Attention speakON is NOT to be used as an mains or power supply connector (AC / DC)!
Mechanical
Cable O.D. 8 - 20 mm
Cable retention 220 N (subject to cable O.D. and material)
Lifetime > 5000 mating cycles
Wiresize 1.5 mm² - 6 mm²
Wiresize 10 AWG
Termination ¼" flat tabs
Locking device Quick Lock
Material
Contact plating Ag
Contacts Copper Alloy
Shell Zinc diecast, KTL coating
Insert Polyamide (PA 6.6)
Strain relief Polyacetal (POM)
Shell coating Black KTL
Environmental
Temperature range -30 °C to +80 °C
Flammability UL 94 V-0
Protection class IP 50 (mated condition)
