XLR kabelkontakt hun 10-pol, sort hus & guldkontakter

Beskrivning

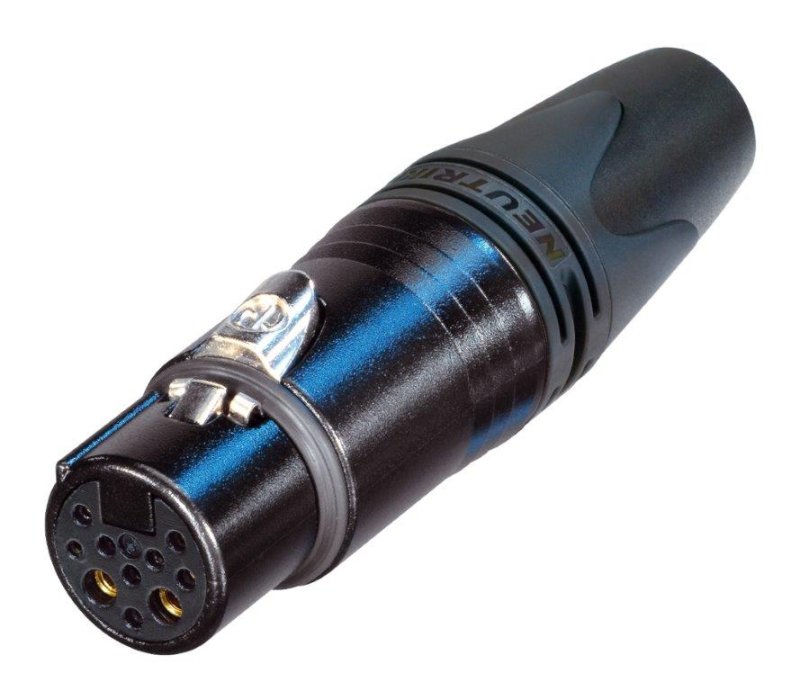

NC10FXX-14-B XLR kabelkontakt hun 10-pol, sort hus & guldkontakter

Nem at samle 8 + 2 pol, højre vinkel, XLR-hunstik, sort kromhus.

Contact resistance: ≤ 3 mΩ
Dielectric strength: 1 kVdc
Insulation resistance: > 10 GΩ (initial); 0,1 (efter fugttest)
Number of electronical contacts: 8 + 2
Rated current per contact: 16 A (strømstifter), 3 A (datastifter)
Cable shield - shell connection: valgbar
Transmission performance: CAT 5e
Cable O.D.: 8,0 - 10,0 mm
Insertion force: ≤ 20 N
Withdrawal force: ≤ 20 N
Lifetime: > 1000 sammenkoblinger
Wiresize: 2,5 mm² / AWG 14 (strømstifter), 1 mm² / AWG 18 (datastifter)
Bushing: PA / PU
Contact plating: 0,2 µm Au hård legering over 2 µm Ni
Contacts: Messing (CuZn39Pb3)
Insert: Polyamid (PA 6.6 30 % GR)
Locking element: Zinkstøbegods (ZnAl4Cu1)
Shell: Zinkstøbegods (ZnAl4Cu1)
Shell plating: Sort krom
Strain relief: POM
Flammability: UL 94 HB
Protection class: IP 40
Solderability: Overholder IEC 68-2-20
Temperature range: -30 °C til +80 °C
Manufacturing Standard: IEC 61076-2-103
