XLR chassis stik han 10-pol, sort hus & guldkontakter

Beskrivning

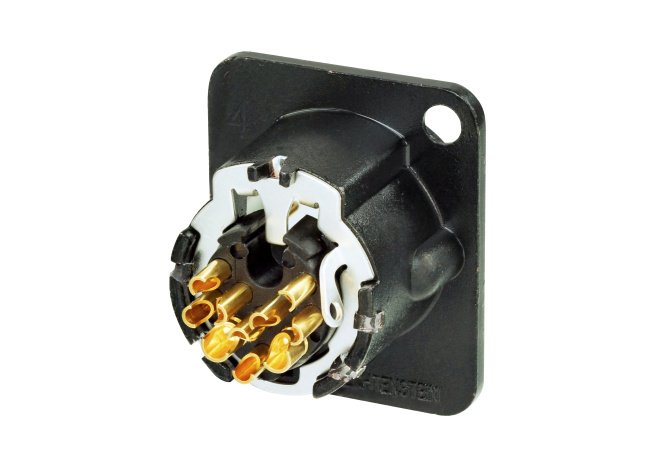

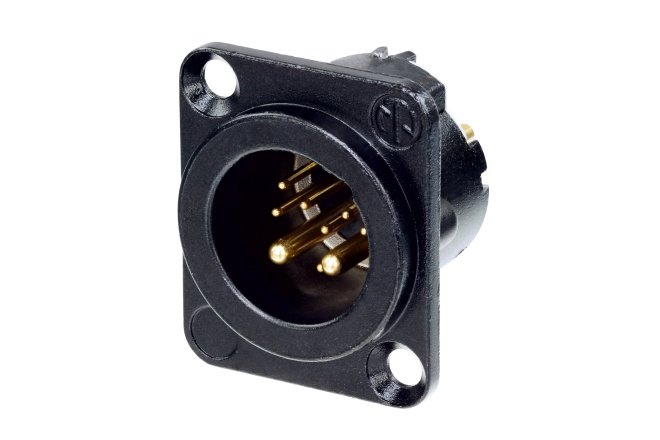

NC10MDLX-B XLR chassis stik han 10-pol, sort hus & guldkontakter

10 pol han D-størrelse stik, sort kromhus, duplex jordkontakt.

Contact resistance: ≤ 3 mΩ
Dielectric strength: 1 kVdc (initial), 0.1 GΩ (after damp heat test)
Insulation resistance: > 10 GΩ
Number of electronical contacts: 8 + 2
Rated current per contact: 16 A (power pins), 3 A (data pins)
Transmission performance: CAT 5e
Insertion force: ≤ 20 N
Withdrawal force: ≤ 20 N
Lifetime: > 1000 koblingscyklusser
Wiresize: 2.5 mm² / AWG 14 (power pins), 1 mm² / AWG 18 (data pins)
Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
Contacts: Messing (CuZn39Pb3)
Insert: Polyamid (PA 6.6 30 % GR)
Locking element: Stål Ck67
Shell: Zink trykstøbning (ZnAl4Cu1)
Shell plating: Sort krom
Flammability: UL 94 HB
Protection class: IP 40
Solderability: Overholder IEC 68-2-20
Temperature range: -30 °C til +80 °C
Manufacturing Standard: IEC 61076-2-103
