Neutrik XLR chassis hankontakt til H-pcb

Beskrivning

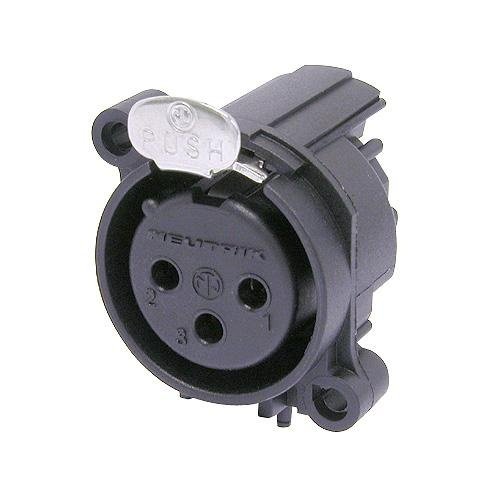

NC3FAAH XLR chassis hankontakt til H-pcb

Capacitance between contacts: ≤ 4 pF
Contact resistance: ≤ 6 mΩ
Dielectric strength: 1,5 kVdc
Insulation resistance: > 10 GΩ (initial)
Rated current per contact: 6 A
Rated voltage: Grounding Options: Pin 1 connected direct to front panel and connector shell, no separate ground contact
Insertion force: ≤ 20 N
Withdrawal force: ≤ 20 N
Lifetime: > 1000 mating cycles

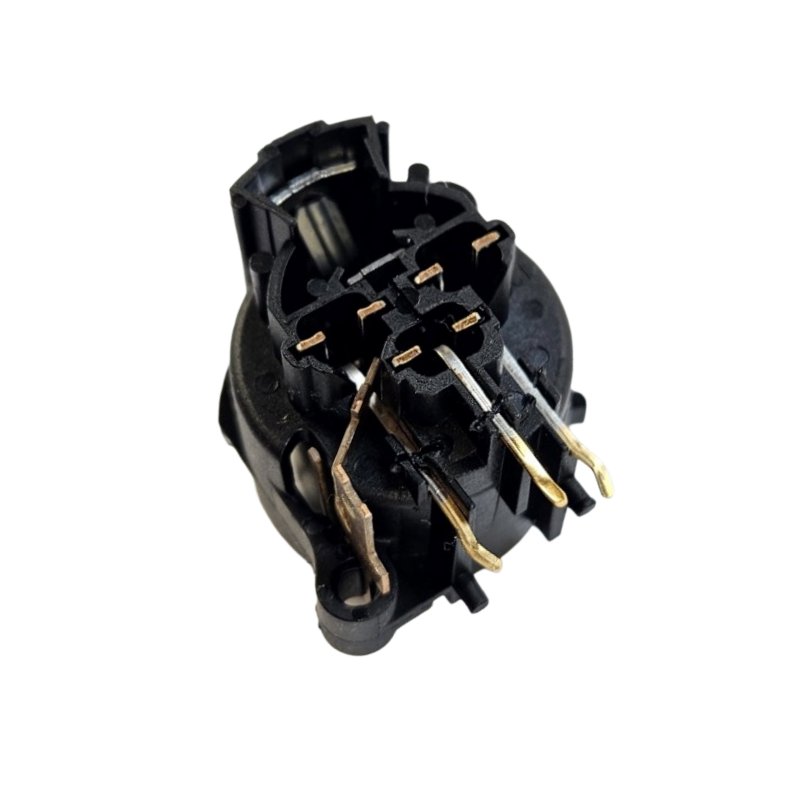

Wiring: Horizontal PCB mount
Locking device: Latch lock
Mounting direction: Rear mounting
Chassis shape: A
Mounting: A-Screw
Contacts: Bronze (CuSn6)
Locking element: Steel Ck67
Shell: Polyamide (PA 6.6 30 % GR)
Approvals: UL
Flammability: UL 94 HB
Standard compliance: IEC 61076-2-103
Protection class: IP 40
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C til +80 °C
