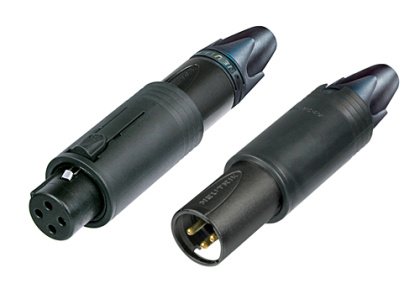

Neutrik XLR ConvertCon unisex kontakt & kåpa hona, guld

Beskrivning

NC3FM-C-B XLR ConvertCon unisex kontakt & kåpa hona, guld

Capacitance between contacts: ≤ 4 pF
Contact resistance: ≤ 3 mΩ
Dielectric strength: 1.5 kVdc
Insulation resistance: > 2 GΩ (initial)
Rated current per contact: 16 A
Rated voltage: Cable O.D.: 3.5 - 8.0 mm
Insertion force: ≤ 20 N
Withdrawal force: ≤ 20 N
Lifetime: > 1000 mating cycles
Wiresize: max. 2.5 mm²
Wiresize: max. 14 AWG
Wiring: Solder contacts
Locking device: Latch lock
Boot: Polyurethan
Contact plating: 0.2 µm Au
Contacts: Brass (CuZn39Pb3) (male)
Insert: Polyamdie (PA 6.6 30 % GR)
Locking element: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
Shell: Black chromium
Shell plating: Nickel
Strain relief: Polyacetal (POM)
Flammability: UL 94 HB
Standard compliance: IEC 61076-2-103
Protection class: IP 40
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +80 °C
