Neutrik 4P XLR chassis han-kontakt, sort hus

Beskrivning

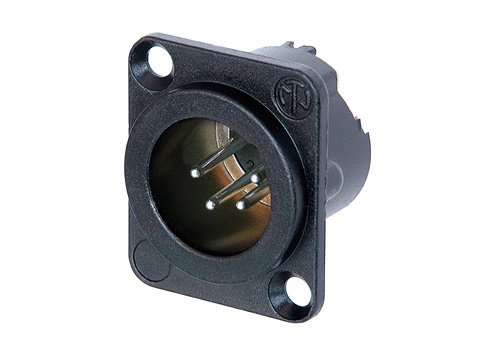

NC4MDLX-BAG XLR chassis han-kontakt, sort hus

Capacitance between contacts: ≤ 7 pF
Contact resistance: ≤ 5 mΩ
Dielectric strength: 1,5 kVdc
Insulation resistance: > 10 GΩ (initial)
Rated current per contact: 10 A
Rated voltage: Insertion force: ≤ 20 N
Withdrawal force: ≤ 20 N
Lifetime: > 1000 mating cycles
Wiresize: max. 1.5 mm²
Wiresize: max. 16 AWG
Wiring: Solder contacts
Locking device: Latch lock
Chassis shape: D
Contact plating: 2 µm Ag over 2 µm Ni
Contacts: Brass (CuZn35Pb2)
Insert: Polyamide (PA 6.6 30 % GR)
Locking element: Steel Ck67
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Black chromium
Flammability: UL 94 HB
Standard compliance: IEC 61076-2-103
Protection class: IP 40
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +80 °C
