Neutrik XLR chassis kontakt 5-polet hun, True Outdoor Performance

Beskrivning

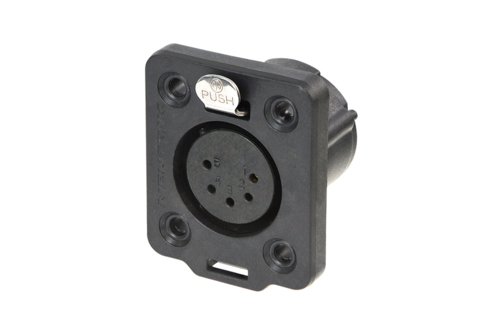

Neutrik NC5FDX-TOP XLR chassis kontakt hun, True Outdoor Performance
NC5FDX-TOP XLR chassis kontakt hun med guldkontakter, IP65 klassificeret.
Heavy duty chassis kontakt hun til udendørs brug. IP65 opnås ved forbindelse til TOP-kabelstik
Forberedt til SCFDX-TOP gummihætte til fastmontering, når stikket ikke er i brug. NC3FDX er vandtæt uanset gummihætte, og der kan ikke trænge vand igennem huset.


Title NC5FDX-TOP
Connection Type XLR
Gender female
Electrical
Capacitance between contacts ≤ 4 pF
Contact resistance ≤ 5 mΩ
Dielectric strength 1,5 kVdc
Insulation resistance > 10 GΩ (initial)
Rated current per contact 7,5 A
Rated voltage < 50 V
Mechanical
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Wiring Solder contacts
Locking device Latch lock
Mounting direction Front mounting
Chassis shape D
Material
Contact plating 0.2 µm Au over 2 µm Ni
Contacts Brass (CuZn39Pb3)
Insert Polyamide (PA 6.6 30 % GR)
Locking element Stainless steel
Gasket TPE
Shell Polyamide (PA 6.6 30 % GR)
Environmental
Flammability UL94 V-0
Standard compliance IEC 61076-2-103
Protection class IP65
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
