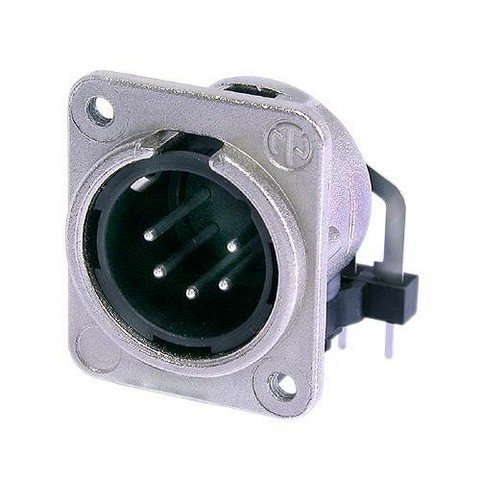

Neutrik XLR chassie han-stik med M3 gänga, printben

Beskrivning

NC5MDM3-H XLR chassie han-stik med M3 gänga, printben

Capacitance between contacts: ≤ 7 pF
Contact resistance: ≤ 5 mΩ
Dielectric strength: 1,5 kVdc
Insulation resistance: > 10 GΩ (initial)
Rated current per contact: 7,5 A
Rated voltage: Insertion force: ≤ 20 N
Withdrawal force: ≤ 20 N
Lifetime: > 1000 mating cycles
Wiring: Horisontell PCB-montage
Locking device: Låsmekanism
Mounting direction: Bakmontering
Chassis shape: D
Mounting: Monteringshål med M3 gängor
Contact plating: 2 µm Ag över 2 µm Ni
Contacts: Mässing (CuZn39Pb3)
Insert: Polyamid (PA 6.6 30 % GR)
Locking element: Stål Ck67
Shell: Zinkgods (ZnAl4Cu1)
Shell plating: Nickel
Approvals: UL
Flammability: UL 94 HB
Standard compliance: IEC 61076-2-103
Protection class: IP 40
Solderability: Följer IEC 68-2-20
Temperature range: -30 °C till +80 °C
