XLR chassishane-stik

Beskrivning

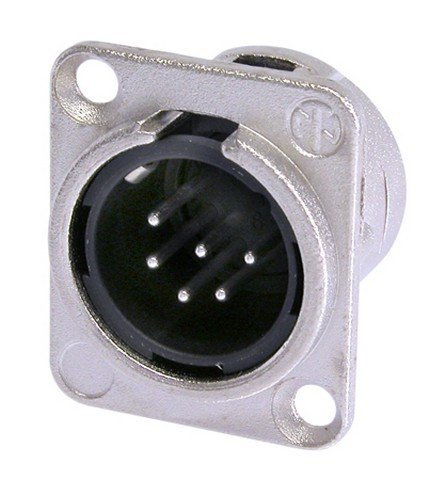

NC6MDL1 XLR chassishane-stik

Capacitance between contacts: ≤ 7 pF
Contact resistance: ≤ 5 mΩ
Dielectric strength: 1,5 kVdc
Insulation resistance: > 10 GΩ (indledende)
Rated current per contact: 7,5 A
Rated voltage: Insertion force: ≤ 20 N
Withdrawal force: ≤ 20 N
Lifetime: > 1000 tilslutningscyklusser
Wiresize: maks. 1.0 mm²
Wiresize: maks. 18 AWG
Wiring: Loddede kontakter
Locking device: Lås
Chassis shape: D
Contact plating: 2 µm Ag over 2 µm Ni
Contacts: Messing (CuZn39Pb3)
Insert: Polyamid (PA 6.6 30 % GR)
Locking element: Stål Ck67
Shell: Zinktryk (ZnAl4Cu1)
Shell plating: Nikkel
Approvals: UL
Flammability: UL 94 HB
Standard compliance: IEC 61076-2-103
Protection class: IP 40
Solderability: Overholder IEC 68-2-20
Temperature range: -30 °C til +80 °C
