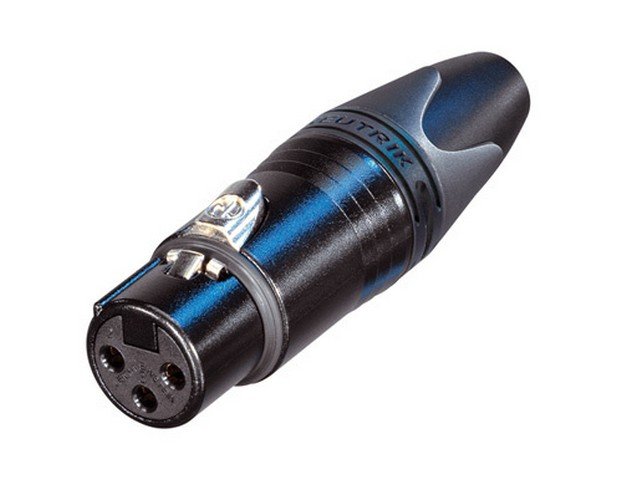

Neutrik NC3FXX-B 3P XLR hona kabelkontakt, svart guldpläterade kontakter

Beskrivning

Neutrik NC3FXX-B XLR kabeluttag hona, svart hölje & guldpläterade kontakter

3-polig honkabelkontakt med svart metallhölje och guldpläterade kontakter.

Nästa generation av den världsomfattande accepterade standarden för XLR-kabelkontakter. Efterträdaren till X-serien erbjuder flera nya funktioner som gör den mer tillförlitlig, lättare att montera och förbättrar kontaktintegriteten samt kabelavlastning.

unique cage design of female contact for low contact resistance and high integrityFemale contact incorporates a solder barrier to prevent solder running into the contact mating areaFemale connector with improved solid metal latch which is larger and easier to handleAdditional ground spring contacts for better shell ground continuityImproved chuck type strain relief provides higher pull-out force and makes assembly easier and fasterBoot with polyurethane gland gives high protection to cable bending stressesColored rings and boots available for coding or identificationSleek and ergonomic design - valuable and handyRugged zinc diecast shell, longlasting and dependableInternal thread on shell is well protected against any damage

Title NC3FXX-B
Connection Type XLR
Gender female
Electrical
Capacitance between contacts ≤ 4 pF
Contact resistance ≤ 3 mΩ
Dielectric strength 1,5 kVdc
Insulation resistance > 10 GΩ (initial)
Rated current per contact 16 A
Rated voltage < 50 V
Mechanical
Cable O.D. 3.5 - 8.0 mm
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Wiresize max. 2.5 mm²
Wiresize max. 14 AWG
Wiring Solder contacts
Locking device Latch lock
Material
Boot Polyurethan
Contact plating 0.2 µm Au hard alloy over 2 µm Ni
Contacts Bronze (CuSn8)
Insert Polyamide (PA66)
Locking element Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
Shell Zinc diecast (ZnAl4Cu1)
Shell coating Black KTL
Strain relief Polyacetal (POM)
Environmental
Flammability UL 94 V-0
Standard compliance IEC 61076-2-103
Protection class IP 40
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
