Mipro MRM72 dobbelt plug-in ACT receiver 8S frekvens 823-831 Mh

Beskrivning

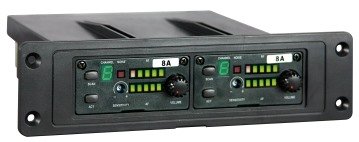

Mipro MRM72B-8S Dobbelt plug-in ACT receiver

MRM72-6A diversity modtagermodul til 2 trådløse mikrofoner. Modulet er til indbygning i Mipro transportable mini PA systemerne; MA708PA og MA808PA. Modtagermodul til 2 stk. ACT52H håndmikrofon eller ACT52T lommesender. Op til 14 samtidige interferensfrie kanaler i det nye godkendte frekvensbånd 823-832MHz.

Frequency Range: UHF 823 - 832 MHz
Bandwidth: 24 MHz
Preset channels: 16
Channel set-up: Scan & ACT Sync
Receiving Mode: CPU-controlled diversity
Oscillation Mode: PLL Synthesized. Frequency stability ≦ ±0.005% (-10℃ – +60℃)
Deviation: Sensitivity: 10 dBμV at S/N > 80 dB
S/N Ratio: > 100 dBA
T.H.D.: Frequency Response: 60 Hz - 15 kHz (Overall system)
Squelch: "PiloTone & NoiseLock" dual-squelch circuits
Spurious Emissions: Audio Output: 610 mV rms
Power Supply: 12 - 15 V DC
Current Consumption: Dimensions (W x H x D): 220 x 57 x 190 mm / 8.7 x 2.2 x 7.5 "
Weight: Approx. 622 g / 22 oz
Operating Temperature: -10°C - +60°C
