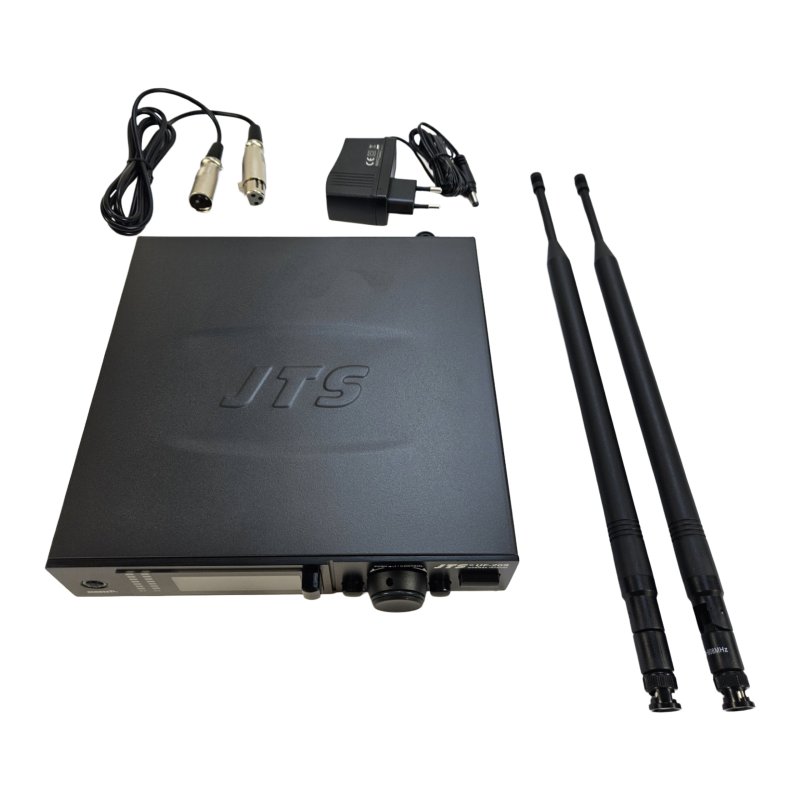

UF-20R 2 kanaler bredband trådlös mikrofon mottagare
UF-20 System
* UHF True diversity-teknologi ger 200-480 meters driftavstånd
* Maximalt 2400 till 3000 valbara frekvenser på 60 till 75 MHz
* Förinställ 15 grupper var och en med upp till 63 kompatibla kanaler
* Användarprogrammerbara 6 grupper med vardera 64 kanaler
* Skanningsfunktion för ledig plats
* JTS Patenterad hinderfri RF-funktion synkroniserar en sändare genom ett knapptryck
* JTS LCX-kretsdesignteknologi minimerar kompanderbrus
SENASTE FUNKTION:
* Sänder nu inte bara frekvensdata utan även sändarens RF-effekt, känslighet, low cut, låsfunktion och användarnamn.
* RF "INGEN SIGNAL" larmfunktion.
* AF "MUTE" varningsfunktion.
* Sändarens "LOW BATTERY" larmfunktion.
* Inbyggd equalizer
* Ström/antenn-kaskadutgång medföljer.
Frekvensband som är lagliga och användbara i Danmark
5A = 530 till 605 MHz
6A = 606 till 681 MHz
6B = 624 till 694 MHz
Frequency Preparation
PLL Synthesized Control
Frequency Setting JTS patented obstacles-free RF REMOSET
Carrier Frequency Range UHF 470~960 MHz
Channel Dual
Bandwidth 60~75MHz Wideband
S / N Ratio > 108dB (A)
T.H.D Chassis 1U standard metal chassis
Preset Channels / Group
* From group 1 ~ 15 up to 63 interference-free compatible channels.
* 690 preset channels / group and 3000 selectable frequencies across 60 to 75 Hz Bandwidth.
* User programmable from U1 ~ U6 each of 64 channels reserved.
Display LCD

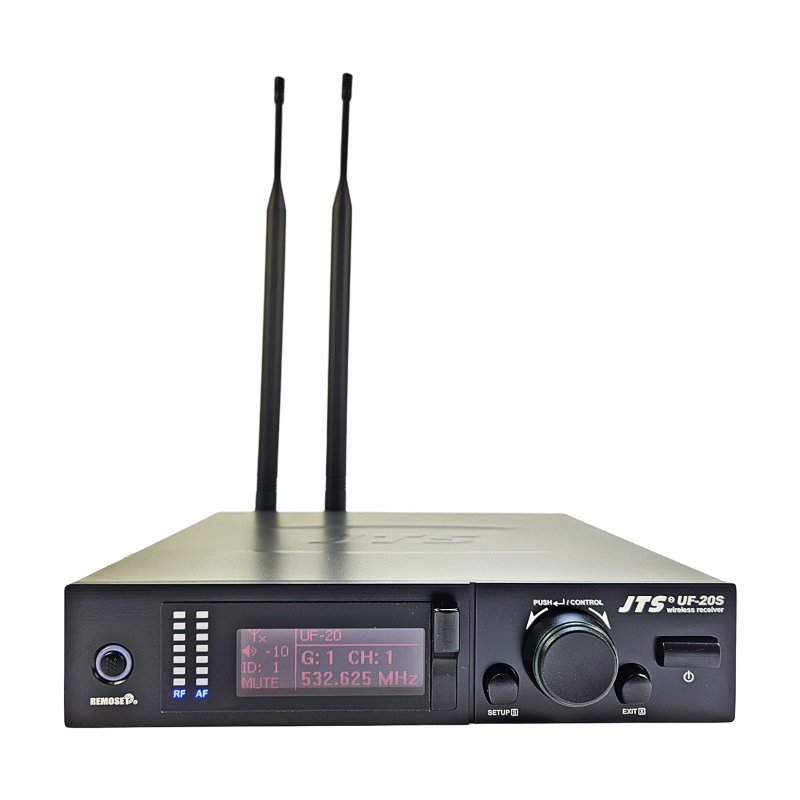

Display Contents Group, Channel, Frequency, Antenna A / B, RF / AF Level Meter, Mute Display, Transmitter Battery Status, REMOSET ID Number, User Name, Squelch
Sensitivity 6dBμV, at S / N> 80dB
Receiving Mode True diversity
Audio Output Level Maximum 6dBu
Receiving Mode True diversity
AF Output Impedance 600Ω
Frequency Response 50Hz ~ 18kHz, with high-pass filter
Squelch Pilot Tone & Noise Mute
Power Supply 100 ~ 240V or 12V DC

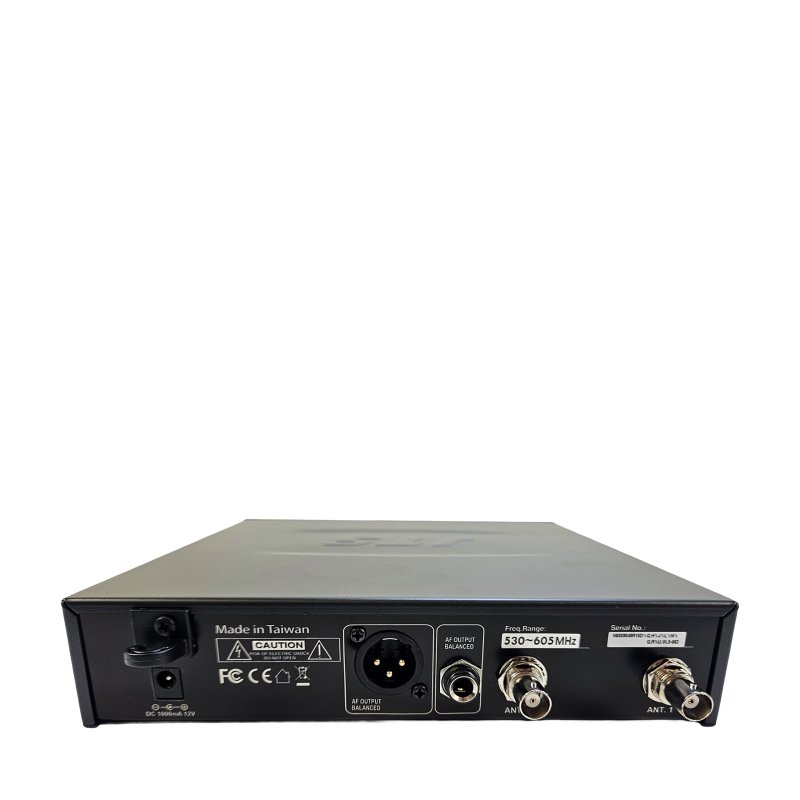

Output Connector 2 XLR Balanced Socket
2 Ø6.3mm Unbalanced phone jack
Dimension (m / m) 480mm (W) 45Mmm (H) 260mm (D)
Notes Actual product specifications may vary depending on model and region.
JSS-20
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range UHF 470~960 MHz
Bandwidth 60~75MHz Wideband
RF Outputs Low / High
Stability Frequency Deviation ±48KHz (Peak)
LCD Display Group, Channel, Frequency, Battery Status, User Name, GAIN Adjust
Controls Power ON / OFF, AF Level, Frequency (Up / Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust
Spurious Emissions Audio Frequency Response 50Hz ~ 18k Hz
Capsule Module Interchangeable
Battery AA NiMH x2
Dimensions 50mm (W) x253mm (H) x35.5mm (D)
Weight 350g
Notes Actual product specifications may vary depending on model and region.
UF-20TB
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range UHF 470~960 MHz
Bandwidth 60~75MHz Wideband
RF Outputs Low / High
Stability Frequency Deviation ± 48KHz (Peak)
Chassis Aluminium alloy
LCD Display Group, Channel, Frequency, Battery Status, User Name , GAIN Adjust
Controls Power ON/OFF, AF Level, Frequency (Up/ Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust
Output Connector 4P Mini XLR
Spurious Emissions Audio Frequency Response 50Hz ~ 18k Hz
Battery AA NiMH x2
Dimensions 62mm (W) x80.3mm (H) x22.6mm (D)
Weight 93g
Notes Actual product specifications may vary depending on model and region.
