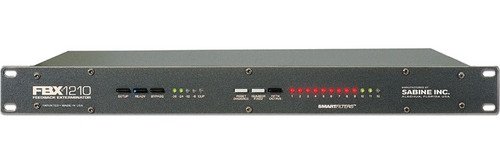

ClearOne Feedback exterminator Sabine FBX1210i

Beskrivning

ClearOne Sabine FBX1210i feedback eliminator

Siden Sabine først opfandt digital automatisk feedback kontrol i 1991, har FBX Feedback terminator sat standarden for gennemsigtig og pålidelig automatisk
feedback kontrol. Sabines nyeste produkt i automatisk feedback controllere er FBX2410 Dual Channel Feedback Controller og FBX1210 single Channel Feedback Controller.
ClearOne fortsætter med at fremstille disse FBX enheder.

FBX1210 inkluderer de nyeste forbedringer af patenterede algoritmer til feedbackkontrol, der giver den hurtigste nogensinde feedbackopdagelse og eliminering.
Det er en Hz placeringsnøjagtighed betyder, at disse filtre er endnu mere transparent, og signal / støjforholdet er forbedret med 10 dB. Alt dette betyder, at det bedste lige er blevet bedre.

■ Super-fast Automatic Feedback Control
■ Quick and Quiet Setup
■ Increased headroom and reduced noise floor
■ Accurately distinguishes music from feedback
■ Places filters with 1 Hz resolution
■ Transparent – leaves your sound clear and untouched
■ Provides more gain before feedback (6 to 9dB typical)
■ 24-bit Digital Resolution
■ Three-color LED filter display
■ 12 Filters per channel
■ Flexible Filter Controls
■ Dynamic Filter Reset
■ XLR & ¼”TRS inputs/outputs

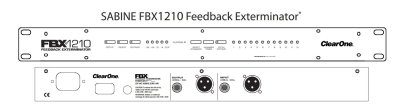

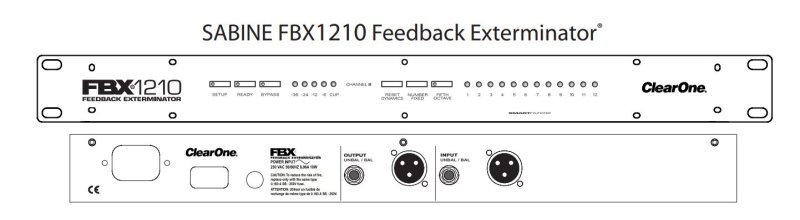

SABINE FBX1210 Engineering Specifications
FILTERS
• 12 independent digital notch filters per channel, controlled automatically from 40 Hz to 20 KHz.
• Filter width: user-controllable – either 1/10 or 1/5 octave*, constant
“Q”
• Resolution: 1 Hz
• Time required to find and eliminate feedback: 0.4 seconds, typical
@ 1 KHz
• Number of Dynamic vs. Fixed filters per channel: user selectable.
Last configuration stored in memory.
INPUT/OUTPUT
• Input/Output Maximum Signal Levels: Balanced +18dBV peak,
unbalanced +18 dBV
• Output Drive: Unit will perform as specified driving a load >600
Ohms
• Input Impedance: Balanced or unbalanced >40K Ohms, PIN 2 high
• Output Impedance: Balanced or unbalanced 150 Ohms nominal,
PIN 2 high
• Bypass: True power off bypass
• Headroom: 14 dBV @ 4 dBV nominal input, balanced
• I/O Connectors: XLR-3 and 1/4” TRS
PERFORMANCE**
• Frequency response: 20 Hz - 20 KHz +/- 0.3 dB
• Gain matching: +/- 0.2 dB
• Spectral Variation: + 0.25 dB, 20 Hz to 20 KHz
• SNR - Dynamic Range: >100 dB
• THD: .005% at 1 KHz. - 20 KHz
POWER INPUT
• 115 VAC: 100 - 130 VAC 50/60 Hz
• 230 VAC: 200 - 240 VAC 50/60 Hz
FUSE
• 115 VAC, 0.1A, 10W, 0.160 A SB fuse
• 230 VAC, 0.06A, 10 W, 0.080 A T fuse
DIMENSIONS
1-U rack mount; 19 x 1.75 x 6.25 in. nominal (rack mountable); 48.3 x
4.5 x 15.9 cm
WEIGHT
8.0 lbs. (3.6 kg) nominal
OPERATING TEMPERATURE
Safe operating temperature: -15 to +50 degrees C ambient temperature (5 to 122F)
