JTS Wireless mikrofon Wideband til R-4, Sort

Beskrivning

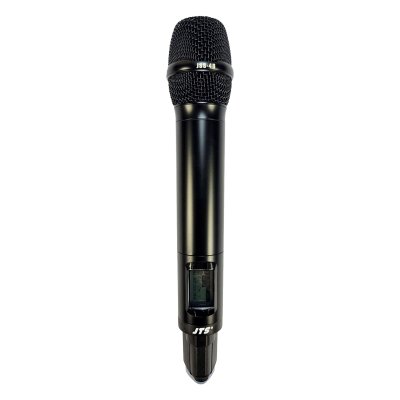

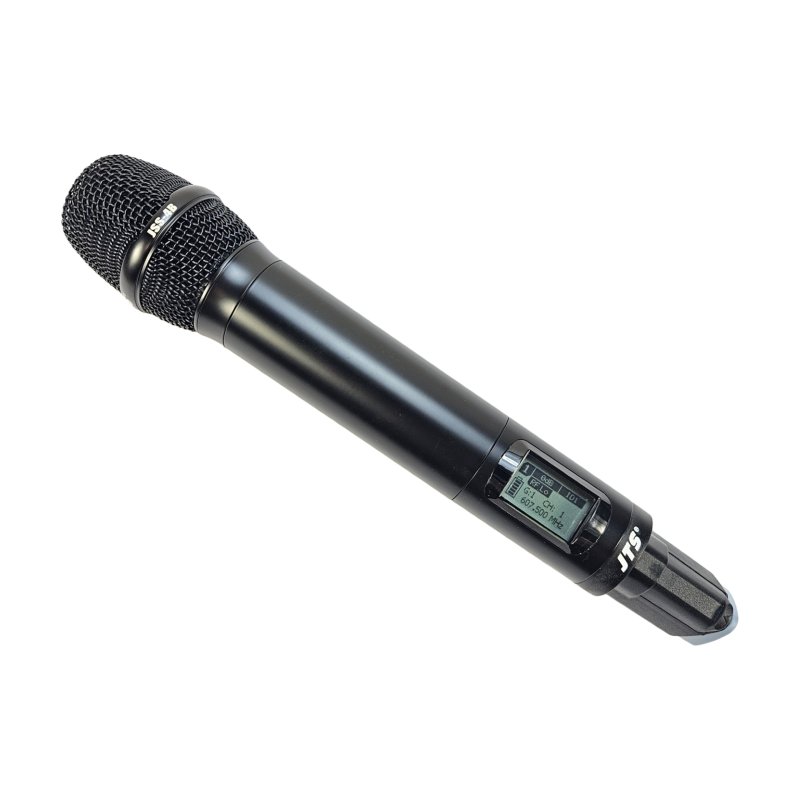

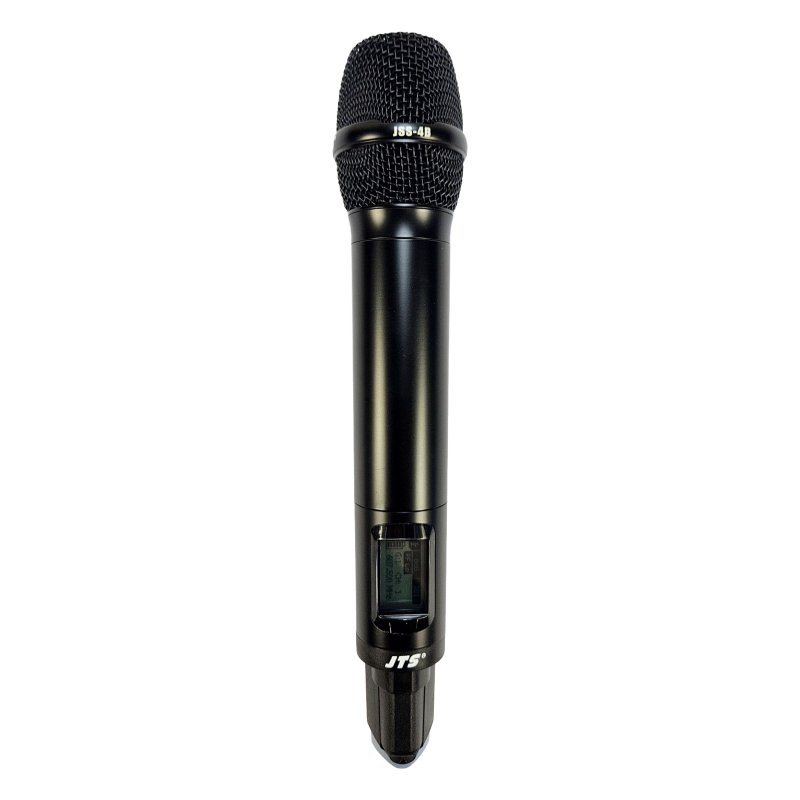

JTS JSS-4B wireless mikrofon i Sort metal hus

Mikrofon er monteret med JTS's professionelle kapsel TC-22 og er kompatibel med Shure kapsler.

2400 til 3000 valgbare frekvenser
Forudindstil 15 grupper hver på op til 63 kompatible kanaler
Phase-Locked Loop (PLL) syntetiseret melodi
Udvidet dynamisk område og glat frekvensrespons.
Justerbar transmissionskraft mellem lav og høj
Panel-Lock-On-funktionen forhindrer manipulation og RF-afbrydelse
Sammen med JTS er forskellige kapsler foretrukket miking sikret.
Kapsel kan udskiftes med TC-22 ægte kondensatorkapsel (ekstraudstyr)

NYeste FUNKTION:
Den er designet med slot-in-opladningsfunktion med to genopladelige AA NiMH-batterier.
Ladedok-station CH-2 er tilkøb (passer sammen med JSS-4A, JSS4B og R-4TBM)

Frequency Preparation PLL Synthesized Control
Carrier Frequency Range UHF 470~960 MHz
Bandwidth 36 MHz Wideband
RF Outputs Low / High
Stability Frequency Deviation ± 48KHz (Peak)
Chassis Aluminium alloy

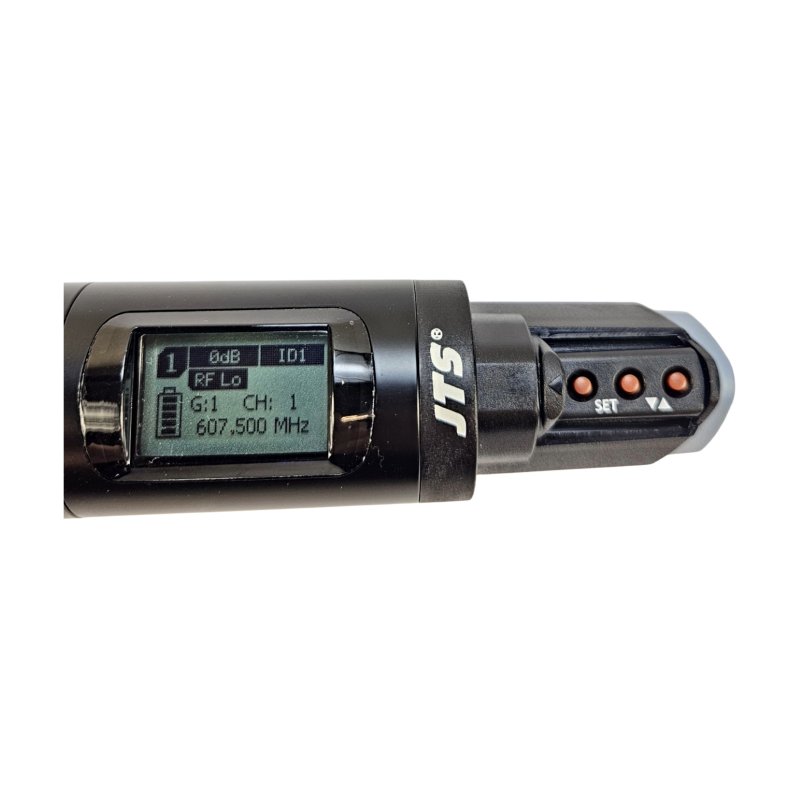

LCD Display Group, Channel, Frequency, Battery Status, User Name , GAIN Adjust
Controls Power ON/OFF, AF Level, Frequency (Up/ Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust
Output Connector 4P Mini XLR
Spurious Emissions Audio Frequency Response 50Hz ~ 18k Hz
Battery UM3, AA x2
Dimensions 50mm (W) x253mm (H) x35.5mm (D)
Weight 93g

TC-22
1/2 True Condenser Capsule
The TC-22 is designed for wireless transmitter.
It brings studio performance onto the stage. It
specially fit JTS JSS-20, JSS-4 and Shure* wireless
transmitters. It is a reasonably priced product for
top musicians.
Note: Shure is a brand owned by Shure Incorporated.
Type: Condenser
Polar pattern: Cardioid
Frequency Response: 50 to 18,000Hz
Sensitivity(at 1,000Hz):
-68±3 dB* (0.4mV) *0dB=1V /bar
Impedance: Rated impedance is 2k
Max. SPL for 1THD: 150dB
Power Supply: 4~6VDC
Current consumption: 1mA
Connector Interface:
Gold-plated PC board contact
Net Weight: 143grams
