Audac Mikrofoninput XLR 45x45 standard, sort

Beskrivning

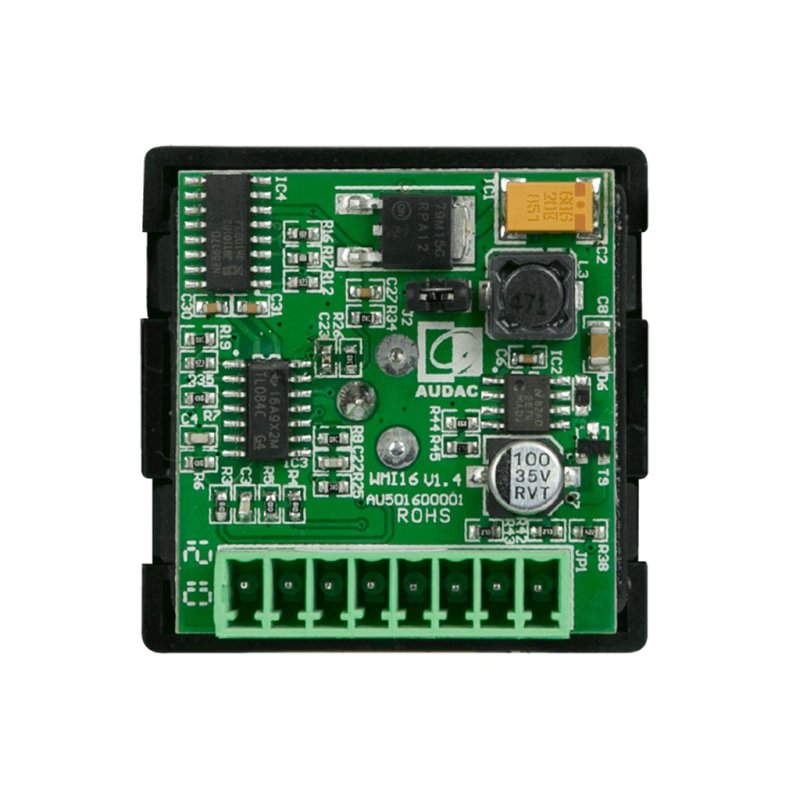

The WMI are flush mountable Wall Microphone Input Units, which can be integrated into several kinds of installation materials for system integration. They are fitted with a Female XLR input connector on the front side and a terminal block connector on the rear side. The signal which is applied to the input connection is converted to a differential signal with increased voltage levels. This way, the signal is made insensitive to interference and noise and can be transferred over a long distance without any loss of quality. This allows reliable signal transmission up to 300 meters over CAT5E (or better) twisted pair cabling. A jumper on the rear side allows enabling of 15 Volts phantom power. It should be used in combination with a matching device on the receiver end.

Varianter
• WMI18/B - Vægmikrofonindgangsenhed (45 x 45 mm)
• WMI18/W - Vægmikrofonindgangsenhed (45 x 45 mm)

System Specifikationer
Kabling UTP CAT5E (eller bedre)
Maks. kabellængde 300 m
Phantom Power 12 V DC
Inputs Connector XLR hun-stik
Outputs Type 4-pin Euro Terminal Block (Pitch - 3.81 mm)
Signal Mono audio-transfer
Niveau Differentieret med øgede spændingsniveauer
Strømforbrug 0.95 W - 40 mA / 24 V

Produktegenskaber
Dimensioner 45 x 45 x 50 mm (B x H x D)
Konstruktion ABS
Montering 45 x 45 mm (Audac / Niko / Legrand)
Farver Sort (RAL9005) (WMI18/B)
Hvid (RAL9010) (WMI18/W)
