Syntax Hybridkabel Ström 3x1,5 mm2 + 2 par DMX, 1 meter Udv. Ø= 14,5 mm

Beskrivning

Syntax 7XD2F315SX hybridkabel

Et godt fleksibelt og robust kabel fra Syntax.
Syntax Hybridkabel Ström 3x1,5 mm2 + 2 par DMX
Udv. Ø= 14,5 mm

Ström + 2 x Digital

7XD1F315SX - 7XD2F315SX

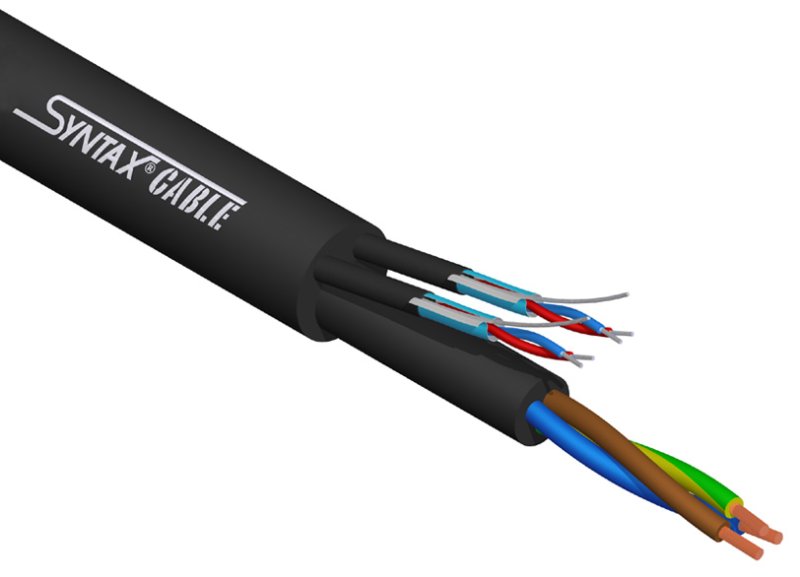

The SYNTAX® POWER+DIGITAL is a hybrid cable with a jacketed 3 x 1.5 mm² mains power cable combined with one or two DMX twisted pairs (7XD1F315SX or 7XD2F315SX). The digital signal pair is shielded by an aluminium/polyester foil screen and covered with a black PVC jacket. The power line is equipped with its own PVC jacket for added safety in compliance with the I.E.C. regulation. Suitable for parallel controls of light mixing boards via power line and DMX signal via digital cable. Also used for analogic audio cabinets when power is supplied. The external flame-retardant black PVC jacket is very flexible, trampling-proof, impact absorbing and water-proof.
Overall diameter 7XD1F315SX: 14 mm, 7XD2F315SX: 14.5 mm. Operating temperature -30° to 70° C.


1(2) x DIGITAL
Conductors: Bare OFC 24 AWG 19 x 0,12 mm
Conductors jacket: red/blue Foam - Skin Ø 1,4 mm
Drain wire: tinned OFC 24 AWG 7 x 0,20 mm
Screen: aluminium/polyester foil 100% cov.
External jacket: Black PVC Ø 3,8 mm flame-retardant
Nominal Impedence: 1-4 Mhz 110 Ω
D.C.R. conductors: D.C.R. shield: Capacitance cond./cond.: 1Khz 40 nF/Km
Capacitance cond./shield: 1Khz 80 nF/Km

1 x STRÖM
Conductors: stranded OFC 3 x 1.5 mm² - 15 AWG
Conductors jacket: Brown, Blue, Green-Yellow PVC
External jacket: Black PVC Ø 6,8 mm flame retardant
----------------------------------------------------------------------------------
Overall jacket: Black PVC super flex flame retardant
7XD1F315SX: Ø 14,0 mm
7XD2F315SX: Ø 14,5 mm
