Syntax Hybrid kabel Power 3 x 1,5mm2 + 3xCAT5e + 2 DMX Udv. Ø=23,3 mm, 1 meter klipp

Beskrivning

Power + 3 x CAT5E + 2 x Digital
7YPW3LN3DG2

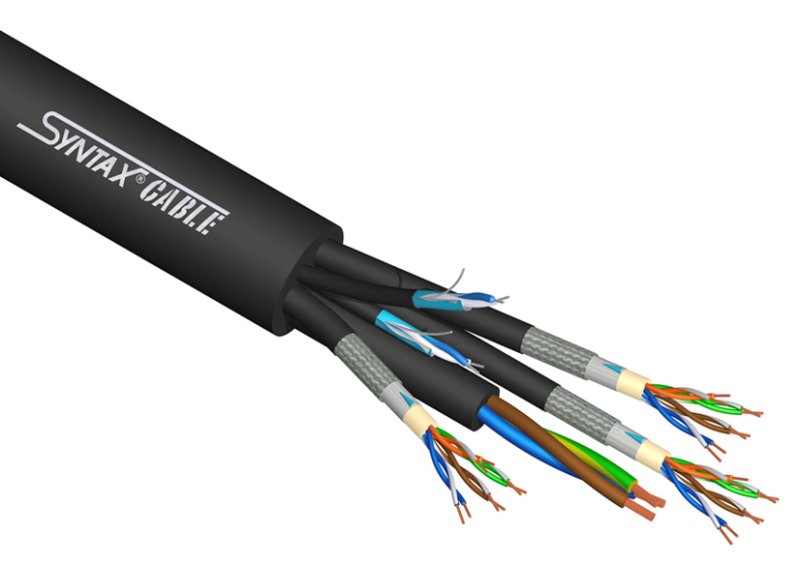

The SYNTAX® 7YPW3LN3DG2 cable was designed for usage on the new digital consoles, which use the third Cat5 as redundant line.
The cable has the same specs as the 7YPW3LN2DG2 cable with the addition of one Cat5 data cable and increased power line up to 2.5mm². Overall diameter 23.3 mm.

3 x CAT5E
Conductors: Solid bare OFC - Ø=0,51 mm
Conductors jacket: Polyolefin Foam - Ø=0,95 mm
Color code: Comply EIA/TIA 568
First screen: aluminium-maylar foil 100%
Second screen: tinned copper braid cov. >80%
Resistance of conductors: Insulation resistance: > 10.000 Ω/Km
Capacity between conductors: 51 nF/Km
Impedance from 1 to 100MHz: 100 Ω

1 x POWER
Conductors: 3 x 2.5 mm² twisted bare OFC 15 AWG
External jacket: Black PVC Ø 9,1 mm flame-retardant

2 x DIGITAL
Conductors: tinned OFC 24 AWG - 28 x 0,10 mm
Conductors jacket: white/blue gas injected foam - Ø 1,4 mm
Drain wire: tinned OFC 24 AWG - 7 x 0,18 mm
Screen: aluminium/mylar foil 100% coverage
Nominal Impedence: 1-4 Mhz 110 ohm/100 mt
External jacket: matt Black PVC flame-retardant
D.C.R.: conductors D.C.R.: shield Capacitance: cond./cond. 1Khz 37 nF/Km
Capacitance: cond./shield 1Khz 57 nF/Km
---------------------------------------------------------------------------------
Overall jacket: matt Black PVC flame-retardant Ø=23,3 mm
