JTS instrument och scen mikrofon kit 8 mic

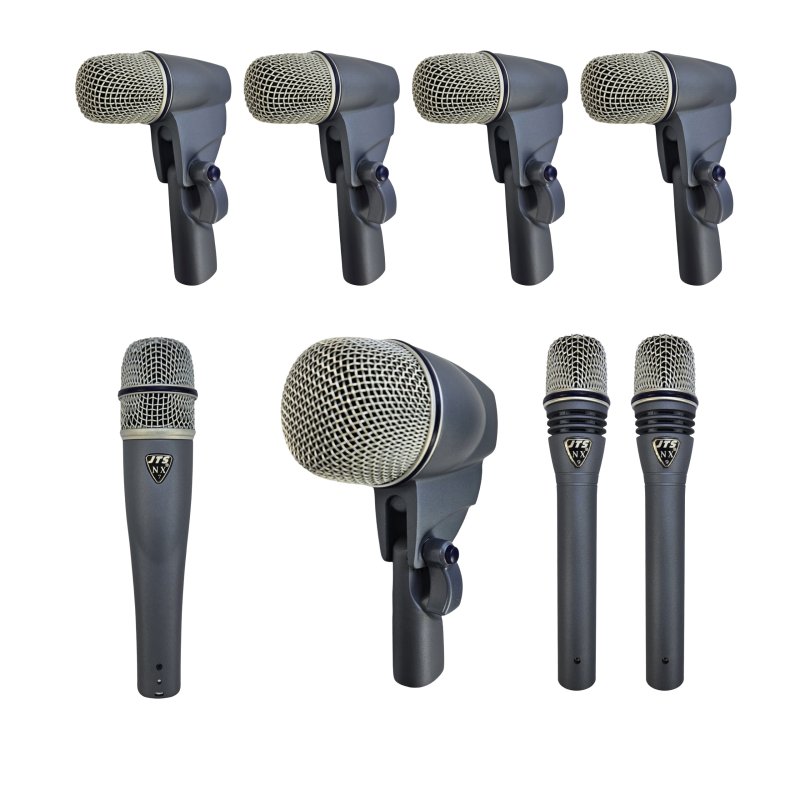

JTS NXB-8M instrument och scen mikrofon kit

NX-2 1 styck
NX-6 4 stycken
NX-7 1 styck
NX-9 2 stycken

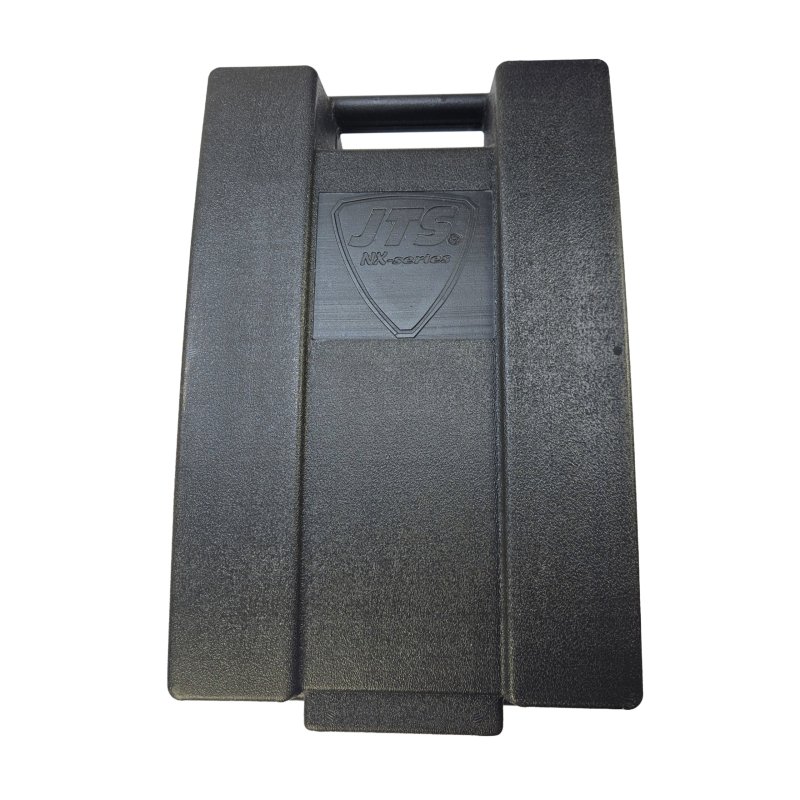

* Robusta, lättviktsdesign.

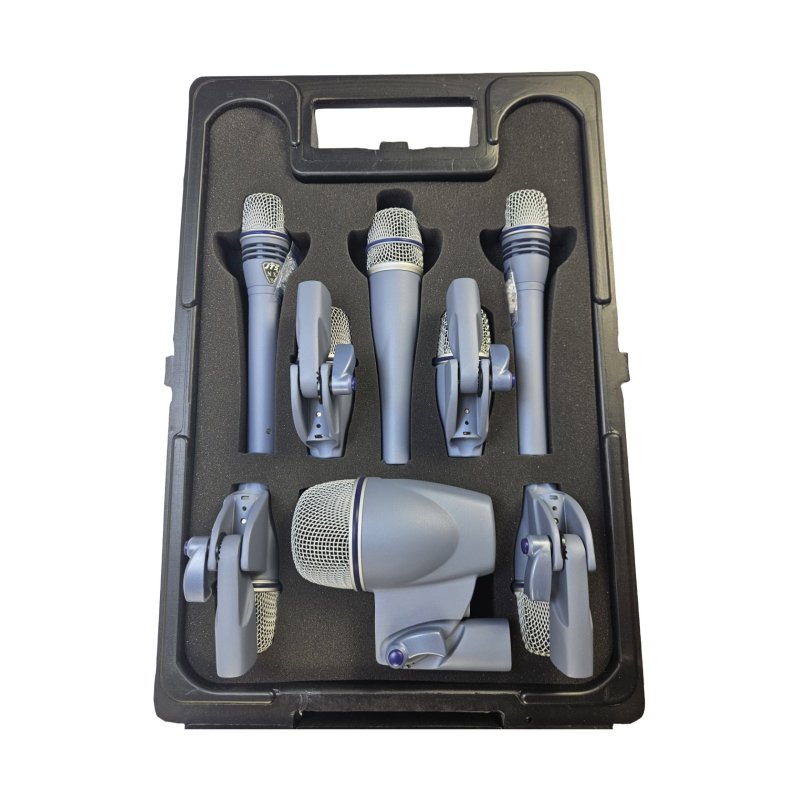

* Det finns plats för 1 NX-2, 4 NX-6 och 3 handhållna mikrofoner.
* Erbjuder stor bekvämlighet och skydd.

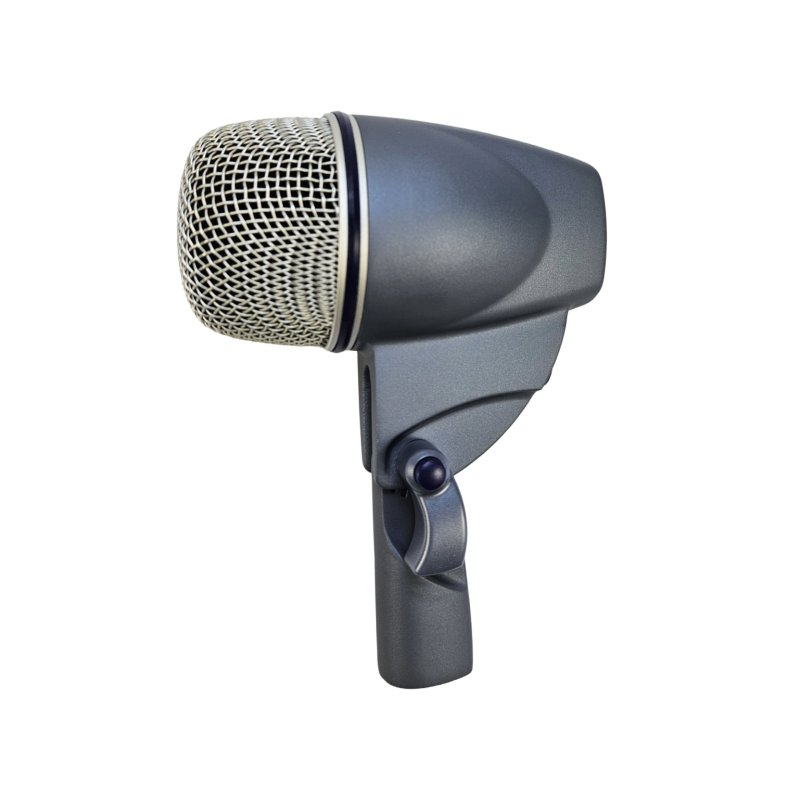

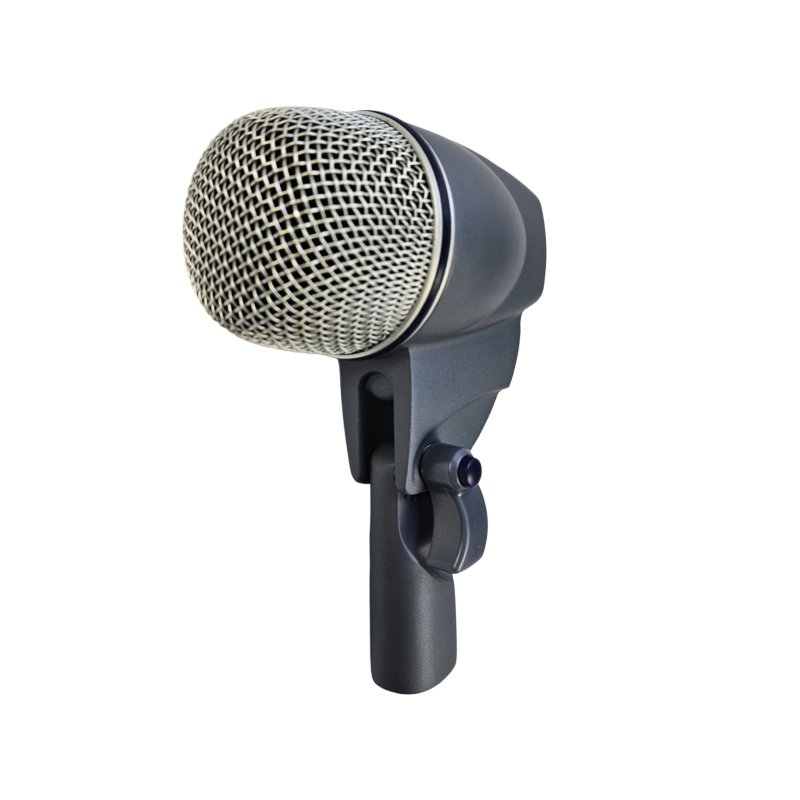

NX-2
Type Moving Coil Dynamic
Frequency Response 20~12,000 Hz
Polar Pattern Supercardioid,rotationally symmetrical about microphone axis, uniform with frequency
Sensitivity(at 1,000Hz) -85dB*(0.056mV)*0dB=1V/µbar
Impedance 600
Phasing Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Connector Three-pin professional audio connector
(male XLR type)
Case Metallic enamel-painted die cast metal body with hardened, matte-finished steel grille Integral, dynamic locking, adjustable through
Adjustable Locking Mount 180°
Net Weight 815 grams (28.75 oz)

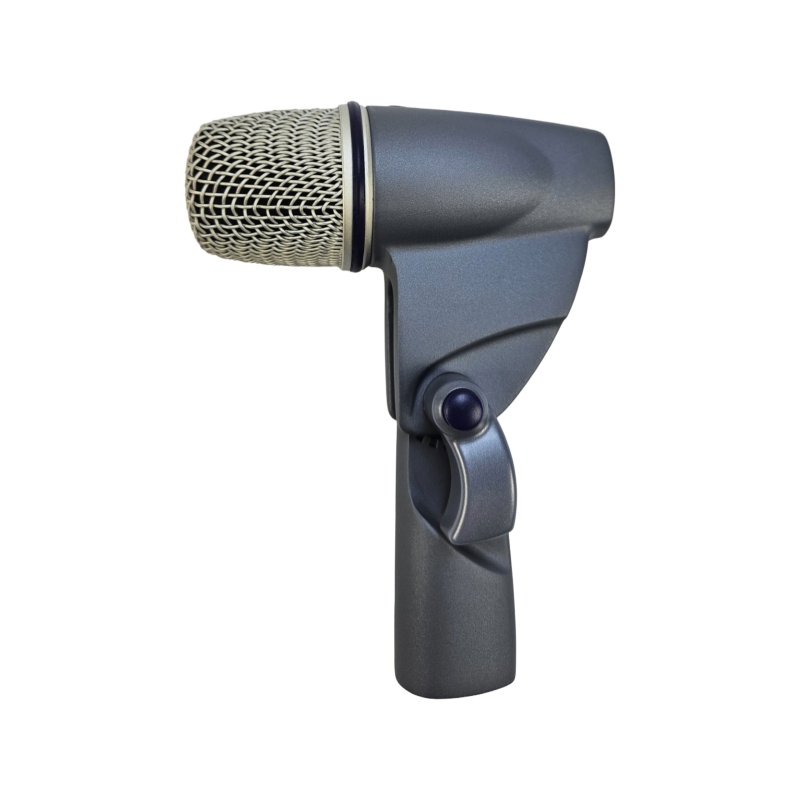

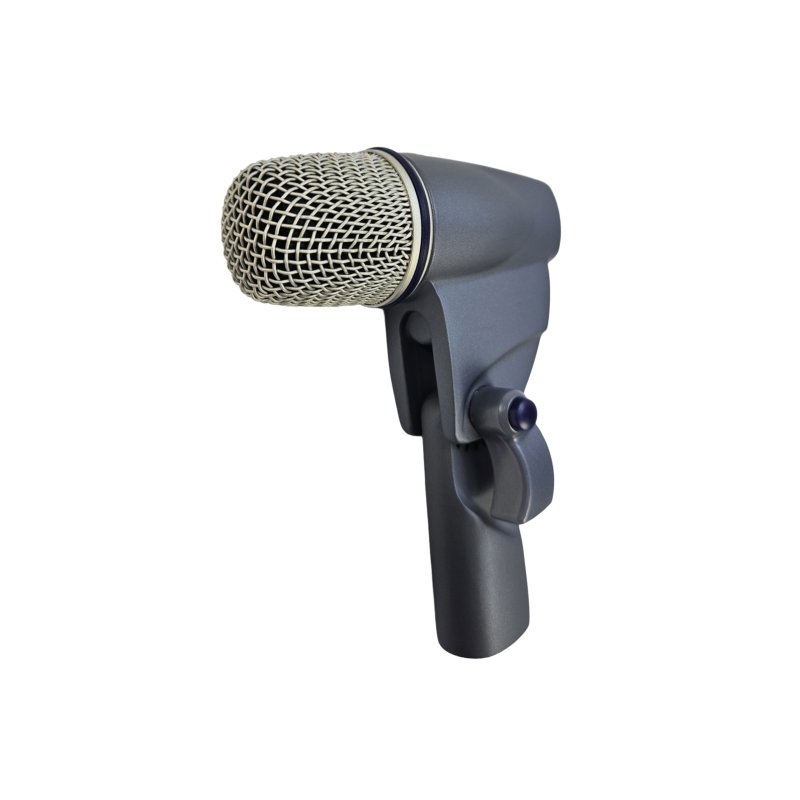

NX-6
IType Moving Coil Dynamic
Frequency Response 60~16,000 Hz
Polar Pattern Cardioid,rotationally symmetrical about microphone axis, uniform with frequency
Sensitivity(at 1,000Hz) -72dB* (0.25mV)*0dB=1V/µbar
Impedance 600
Phasing Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Connector Three-pin professional audio connector (male XLR type)
Case Metallic enamel-painted die cast metal body with hardened, matte-finished steel grille Integral, dynamic locking, adjustable through
Adjustable Locking Mount 180°
Net Weight 610 grams (21.51 oz)
Touch Noise Super low

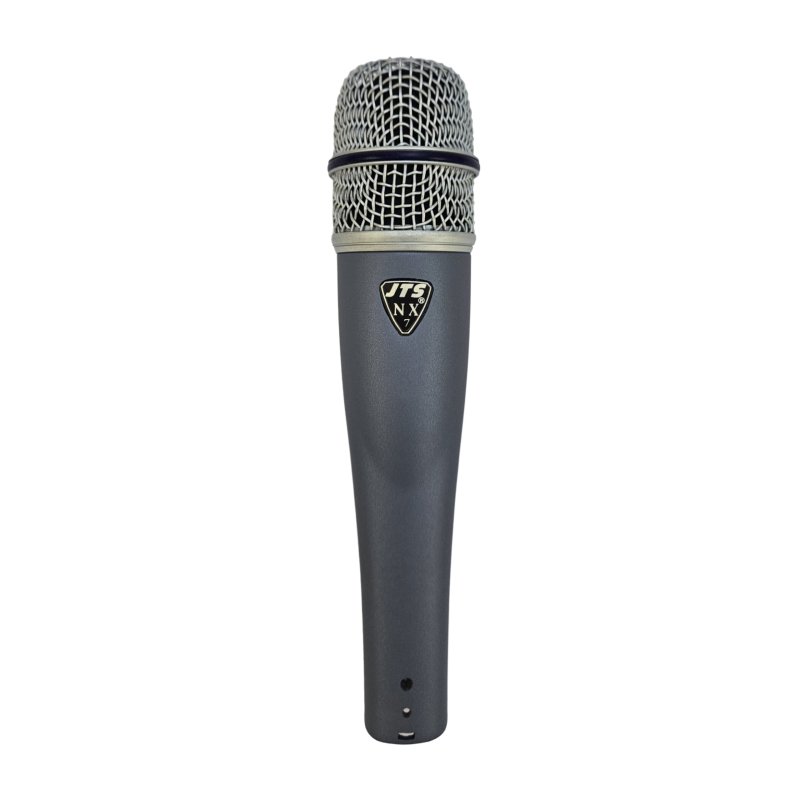

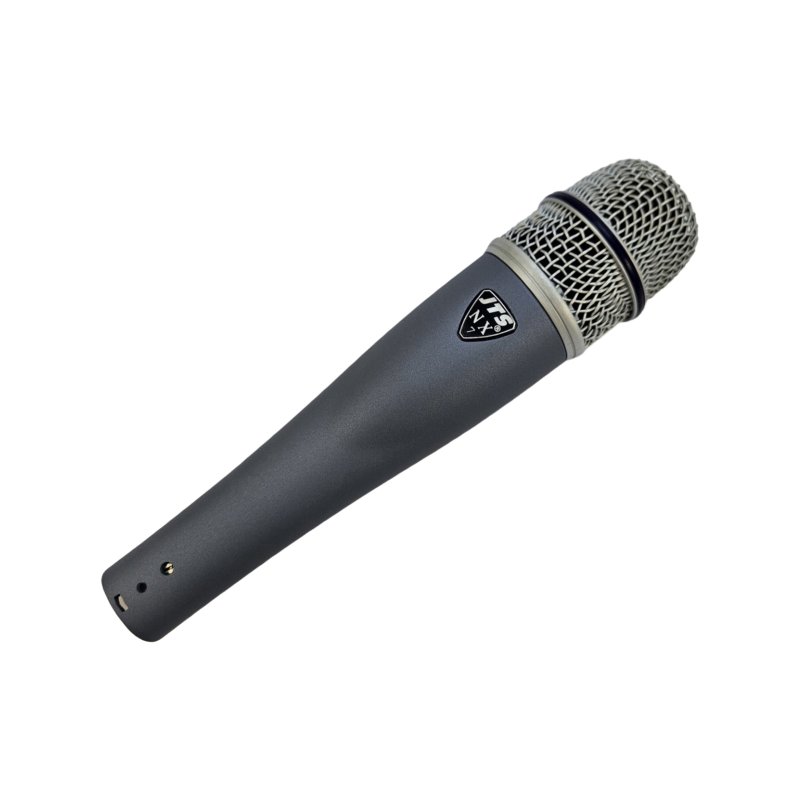

NX-7
Type Moving Coil Dynamic
Frequency Response 50~16,500 Hz
Polar Pattern Cardioid,rotationally symmetrical about microphone axis, uniform with frequency
Sensitivity(at 1,000Hz) -72dB*(0.25mV)*0dB=1V/µbar
Impedance 600
Phasing Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Connector Three-pin professional audio connector
(male XLR type)
Case Metallic enamel-painted die cast metal body with hardened, matte-finished steel grille
Net Weight 235 grams (8.3 oz)

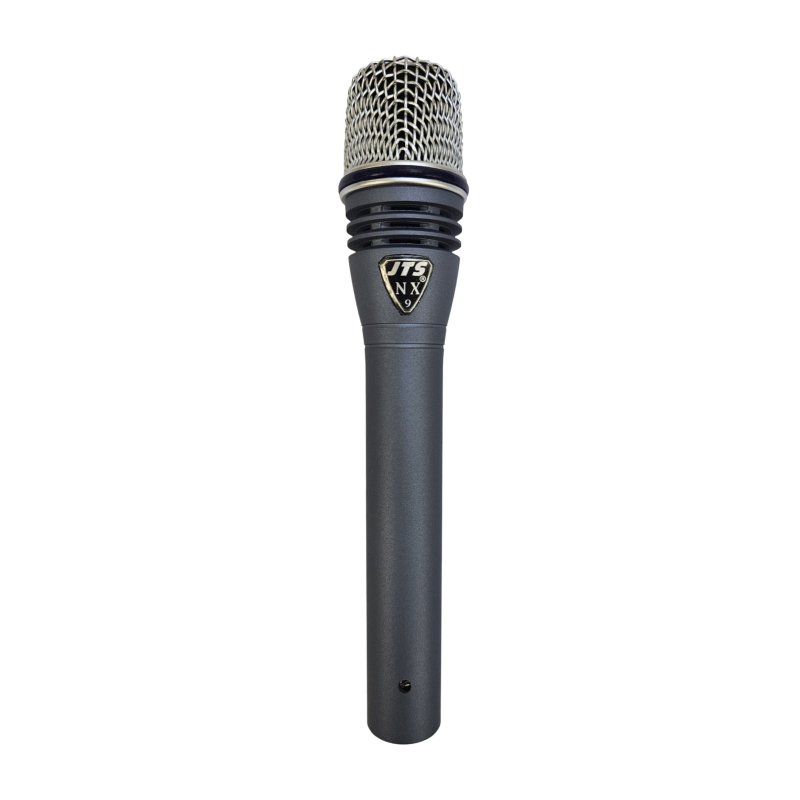

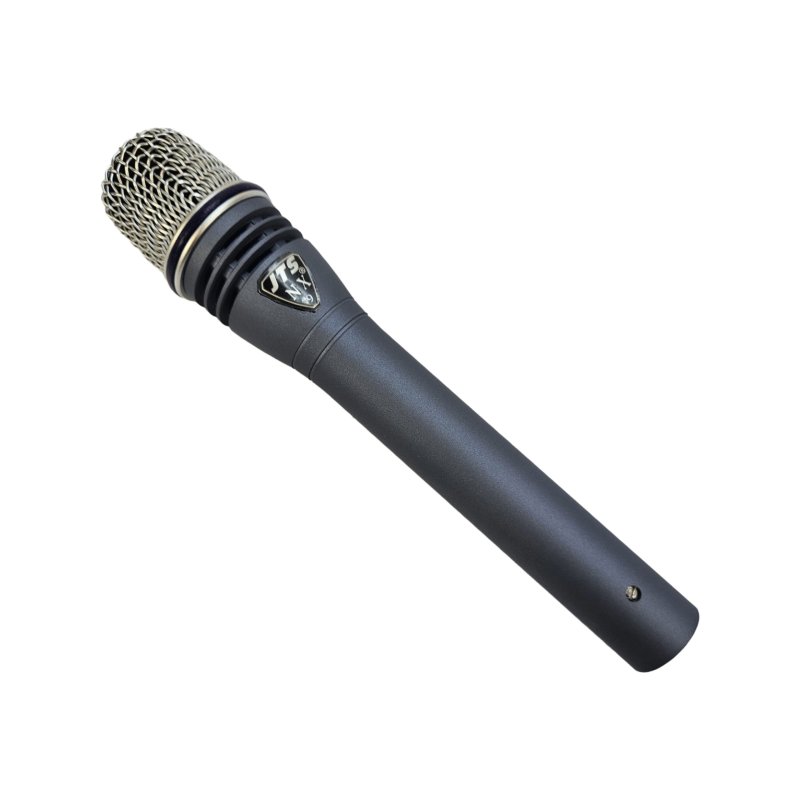

NX-9
Type Electret Condenser
Frequency Response 60~18,000 Hz
Polar Pattern Cardioid,rotationally symmetrical about microphone axis, uniform with frequency
Sensitivity(at 1,000Hz) -70dB*(0.32mV)*0dB=1V/µbar
Output Impedance 400
Phasing Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Connector Three-pin professional audio connector
(male XLR type)
Case Metallic enamel-painted die cast metal body with hardened, matte-finished steel grille
Net Weight 230 grams (8.1 oz)
Touch Noise. Super low
Power Supply 9-52V phantom power or battery 1.5V AA
