Synco trådløst mikrofonsæt til DSLR UHF frekvens 572 - 586 MHz

Beskrivning

SYNCO T1 trådløst mikrofon sæt

Kompakt og letvægtsæt fremstillet i hårdfør ABS-plast.
God lydkvalitet og stabil i drift.

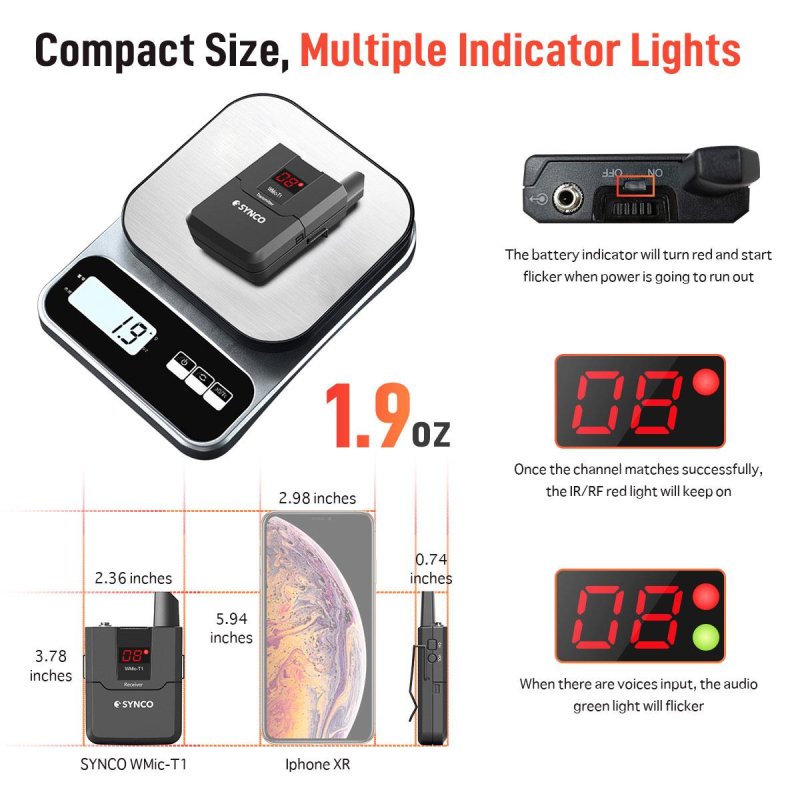

LCD-display

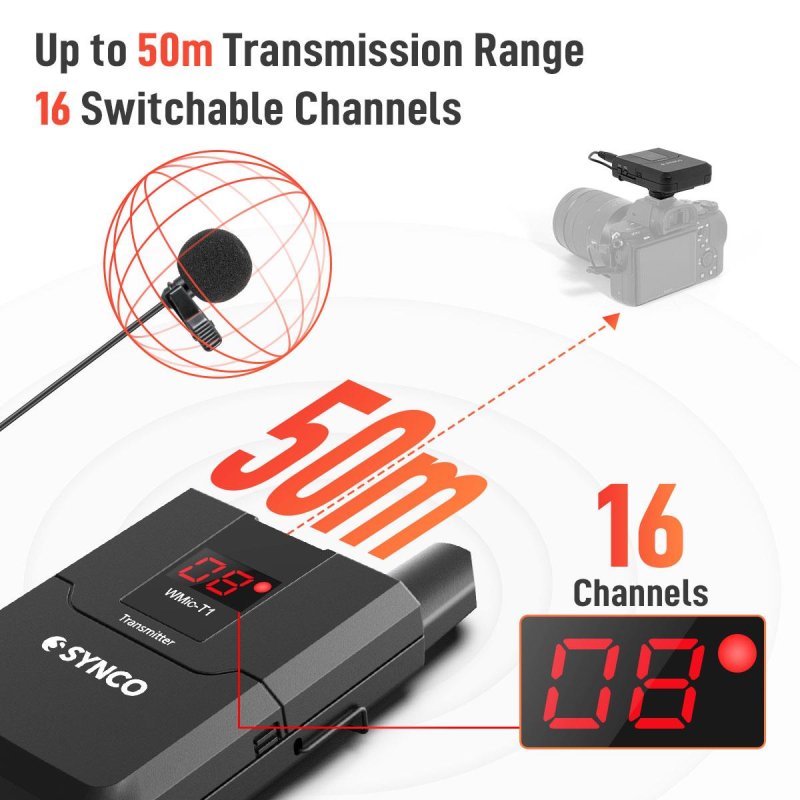

Rækkevidde op til 50 meter
16 valgfrie kanaler i frekvensområdet 572 til 586 MHz (godkendt til brug i Danmark)

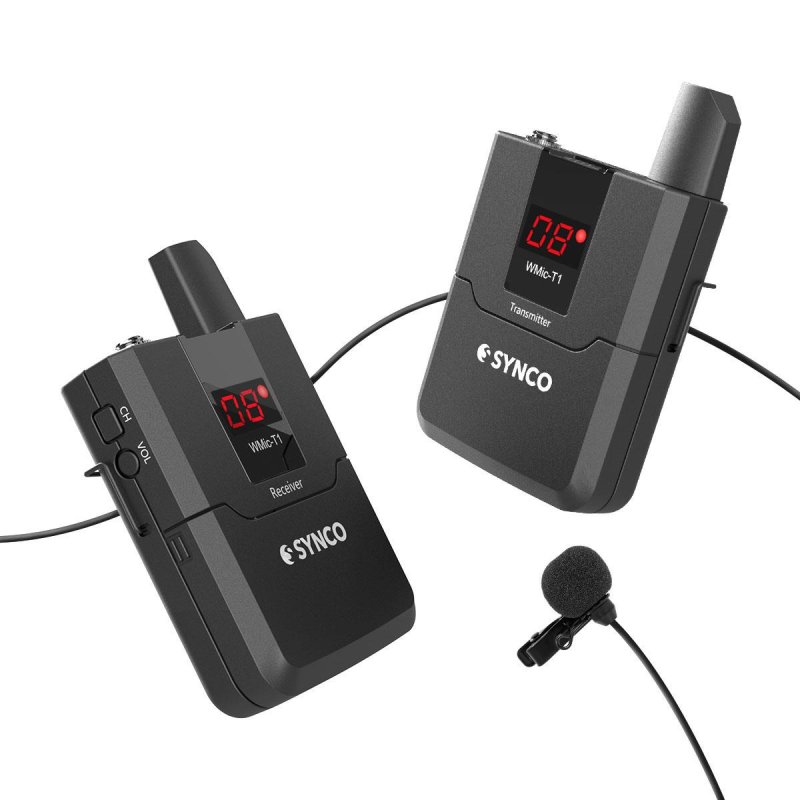

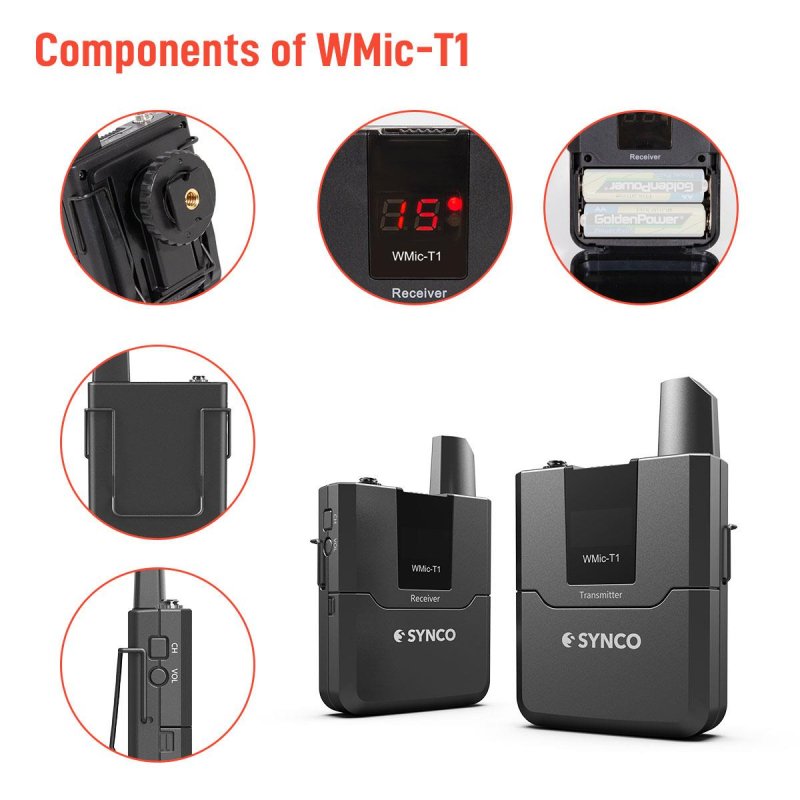

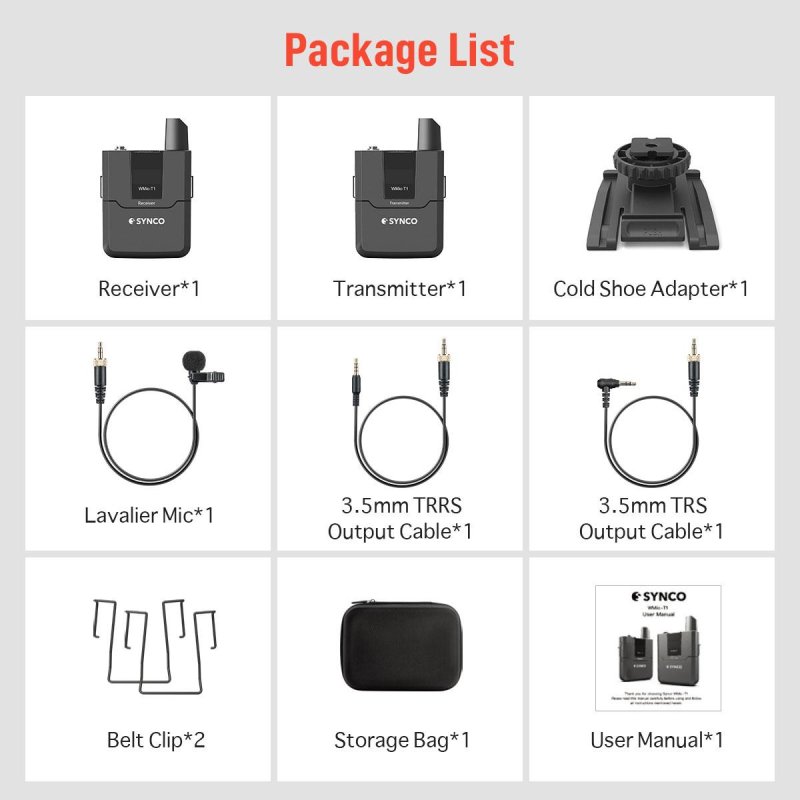

Består af:
1 x sender (TX) med bælteclips
1 x modtager (RX) med bælteclips
1 x 3,5 mm TRS output kabel
1 x 3,5 mm TRRS output kabel
1 x Lavalier mikrofon
1 x kamera-sko adapter
1 x opbevaring softbox
1 x brugermanual


Transmitter (TX)

Channel 16
Frequency Range 572MHz-586MHz
Oscillation Mode PLL Frequency Synthesis
Working Distance ≥50m
Transmit Power 13.5dBm
Carrier Frequency Error 0.01%

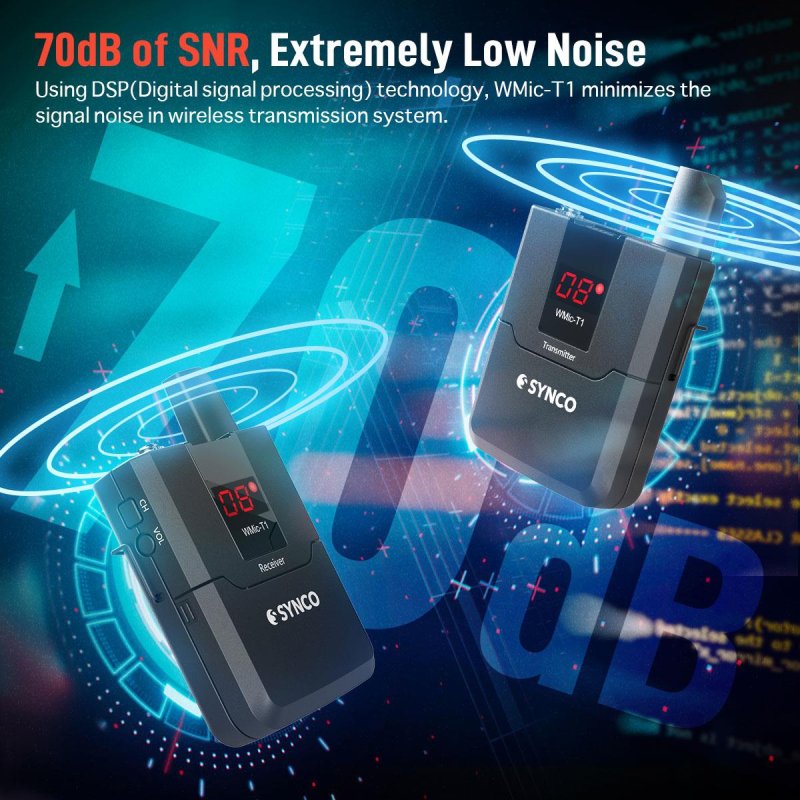

Signal/Noise >70dB
Harmonic Radiation -32dBm
Modulation Mode FSK
Max. Frequency Deviation ± 65KHz
Dynamic Range 92dB
Antenna 1/4 Wavelength Wire Antenna
Max Input Level 250mV
Input Impedance 2.2KΩ
Input Gain Adjustment 1-5 levels adjustable
Audio Output 3.5mm
Battery AA 1.5V x 2, 120mA
Dimensions 96x60x18.8 (mm)
Net Weight 55g (without battery)
Working Temp. 0℃ ~ +50℃
Storage Temp. -20℃ ~ 60℃

Receiver (RX)

Channel 16
Frequency Range 572MHz-586MHz
Oscillation Mode PLL Frequency Synthesis
Receiving Mode Superheterodyne
Working Distance ≥50m
Signal/Noise >70dB
Dynamic Range 92 dB
Received Power 13.5dBm
Image Rejection 45dBm
Antenna 1/4 Wavelength Wire Antenna
Noise Control Built-in Setting Parameters
RF Sensitivity When inputting 10dBu, S/N ≥ 45dB
Output Level Range 1-5 levels adjustable
Frequency Setting Manual IR Sync
Audio Output 3.5mm
Output Impedance 400Ω
Battery AA 1.5V x 2
Dimensions 96x60x18.8 (mm)
Net Weight 55g (without battery)
Working Temp. 0℃ ~ +50℃
Storage Temp. -20℃ ~ 60℃
